Heatmiser SLIMLINE - Wiring Diagram - Slimline to Spring Return Valve

26Model: Slimline

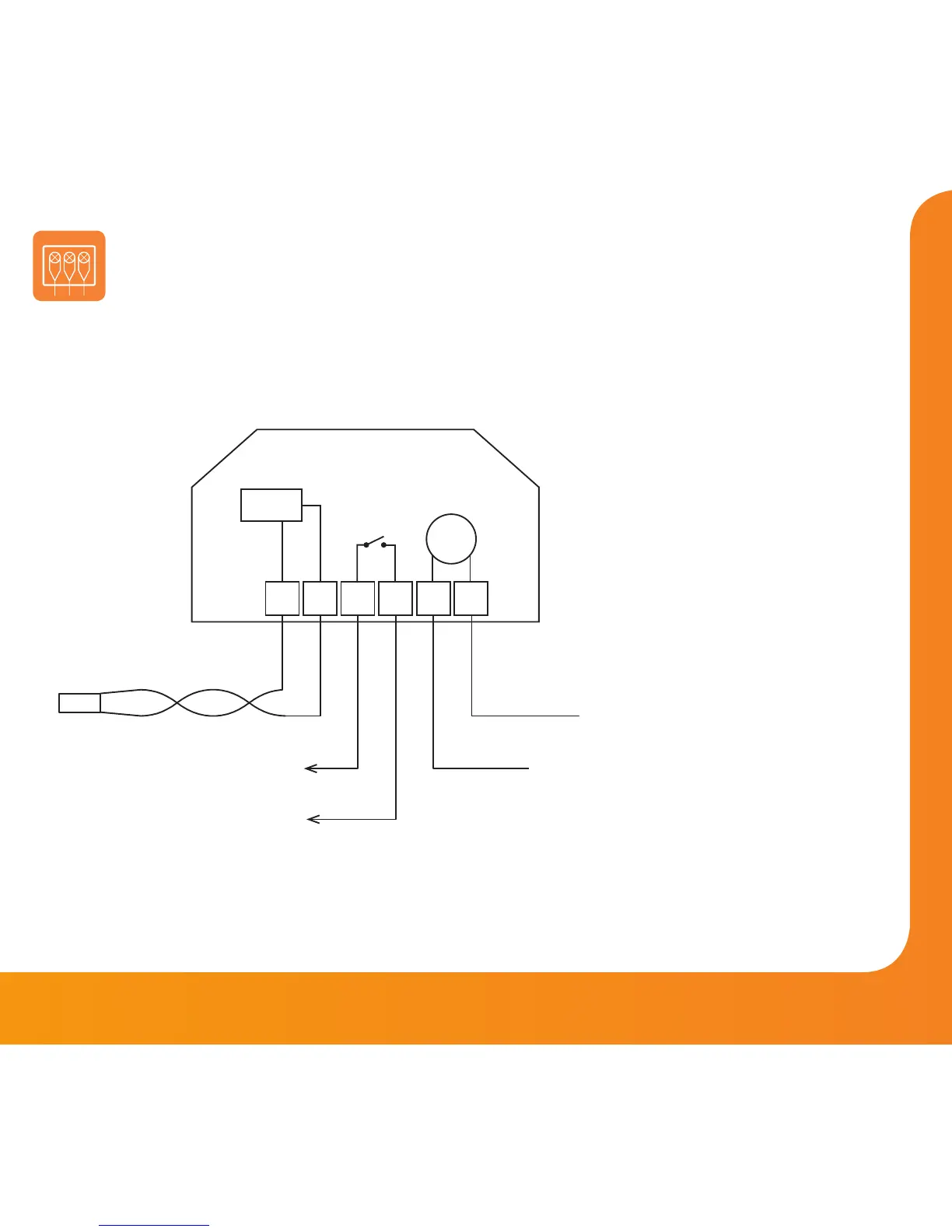

Wiring Diagram - Slimline to Boiler Voltfree
TO CONNECT BOILER CONSULT
BOILER MAKERS DIAGRAM
NEUTRAL
LIVE
LS
LR
230V SUPPLY IN
LS & LR ARE NORMALLY THE
ROOM THERMOSTAT CONNECTIONS
REMOTE PROBE
VOLT FREE TO BOILER
230V AC 50/60Hz
Slimline
RT - A2 A1 N L
Remote
Air Sensor
230VAC
THIS UNIT MUST BE PROTECTED BY A FUSE OR RCD
