TO CONNECT BOILER CONSULT
BOILER MAKERS DIAGRAM
L
N
LS
LR
LS & LR ARE NORMALLY THE
ROOM THERMOSTAT CONNECTIONS
REMOTE PROBE
TO BOILER
NEUTRAL
NEUTRAL
LIVE
Remote
Air Sensor

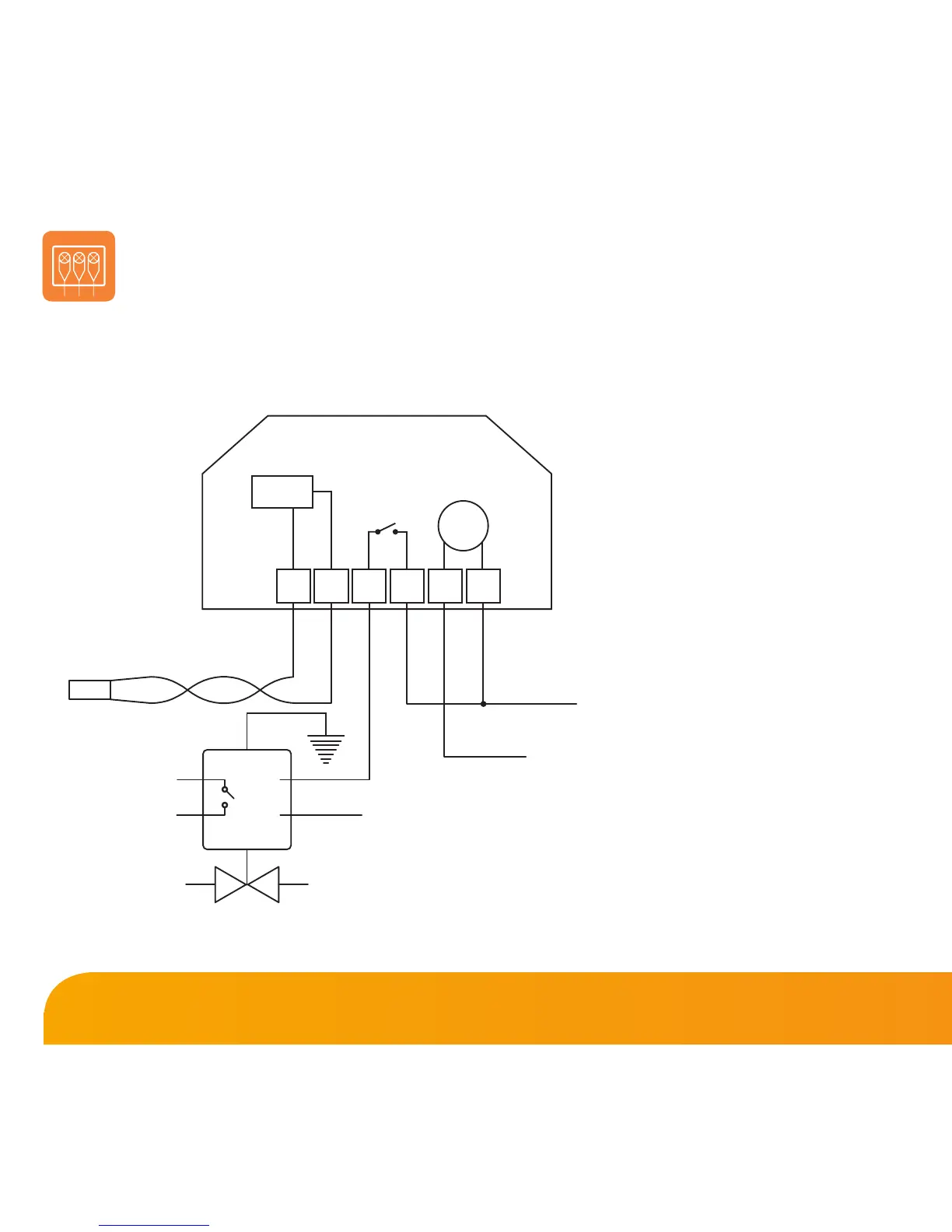

Wiring Diagram - Slimline to Spring Return Valve
HEATING VALVE
230V AC 50/60Hz
Slimline
NA1A2-RT L
230VAC
THIS UNIT MUST BE PROTECTED BY A FUSE OR RCD
230V SUPPLY IN
