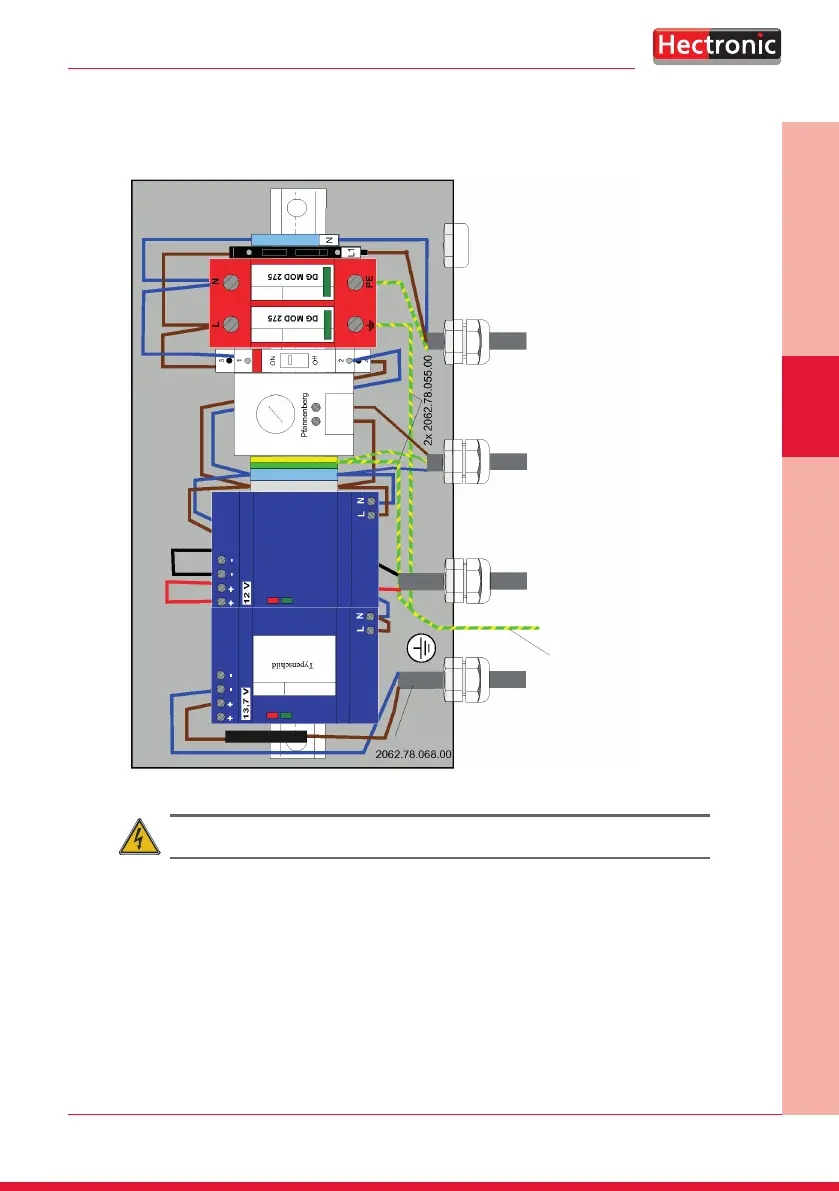

3.2.5. Connection Diagram for Mains Supply According to UL (With All Options)
Before fuse F1 is replaced, the parking machine must be disconnected from the mains supply by an authorised
electrician. Only authorised electricians may work on the power supply unit.
Fuse F1: T6.3A H 250V
Mains supply
Heating (option)
JCM BNA (option)
Grounding cover
Voltage for Citea
