37
of the forklift truck.

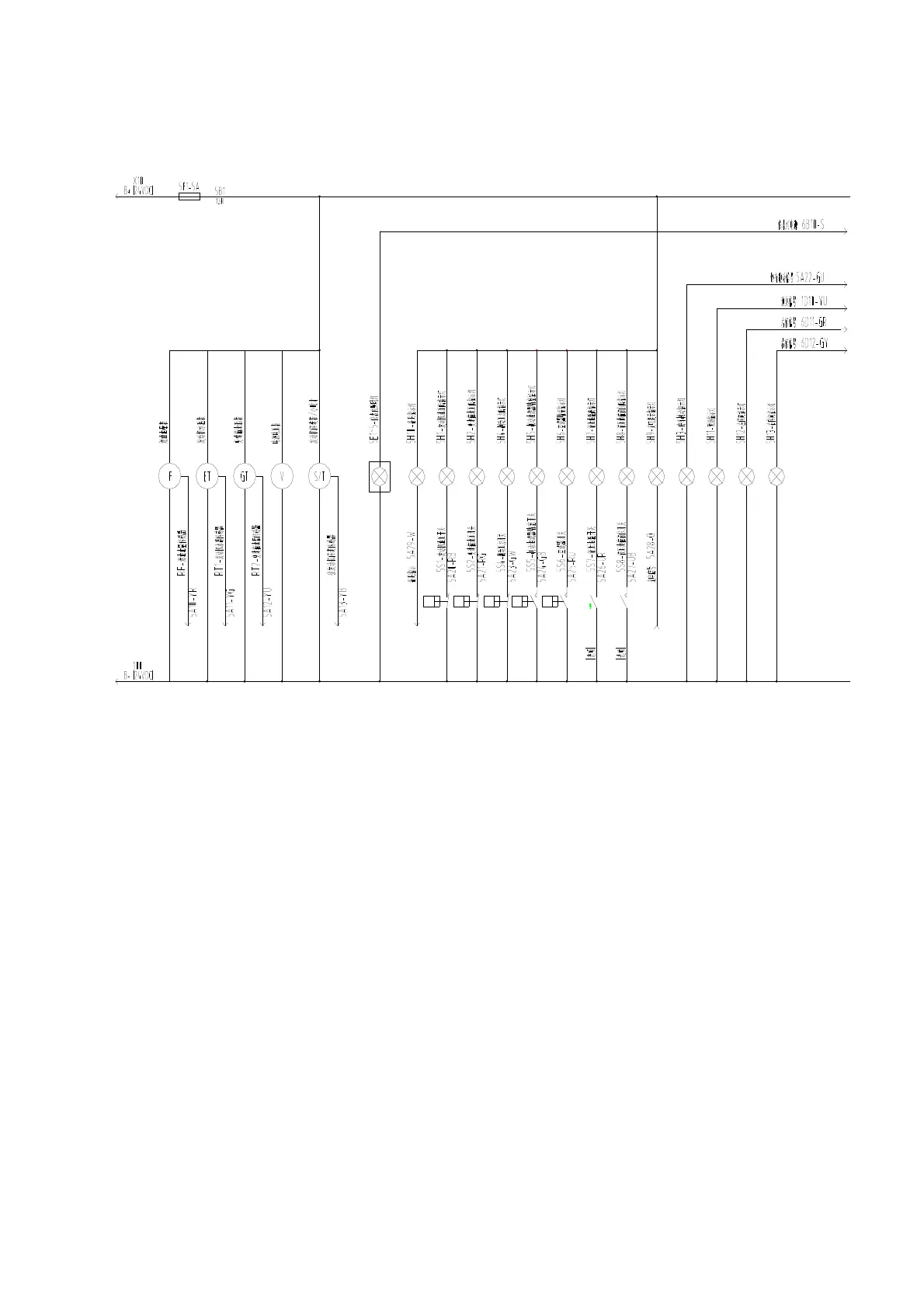

Fig.7-3 Electric Principle Drawing of Instrument
(6) Lighting and Signal Instruments
They include all kinds of illuminating lamps, signal lamp, horn and buzzer, etc.
Headlight：35W
Front combination lamp: farness light/near light:75W/70W, turning/front:
21W/8W
Rear combination lamp: (turning / rear / reverse / braking): 21W (red) / 8W (red)
/ 10W (white) / 21W (red)
Warning lamp: (optional)21W
Rear lamp: (optional)70W
Licenese lamp: (optional)10W
