(7) Cab

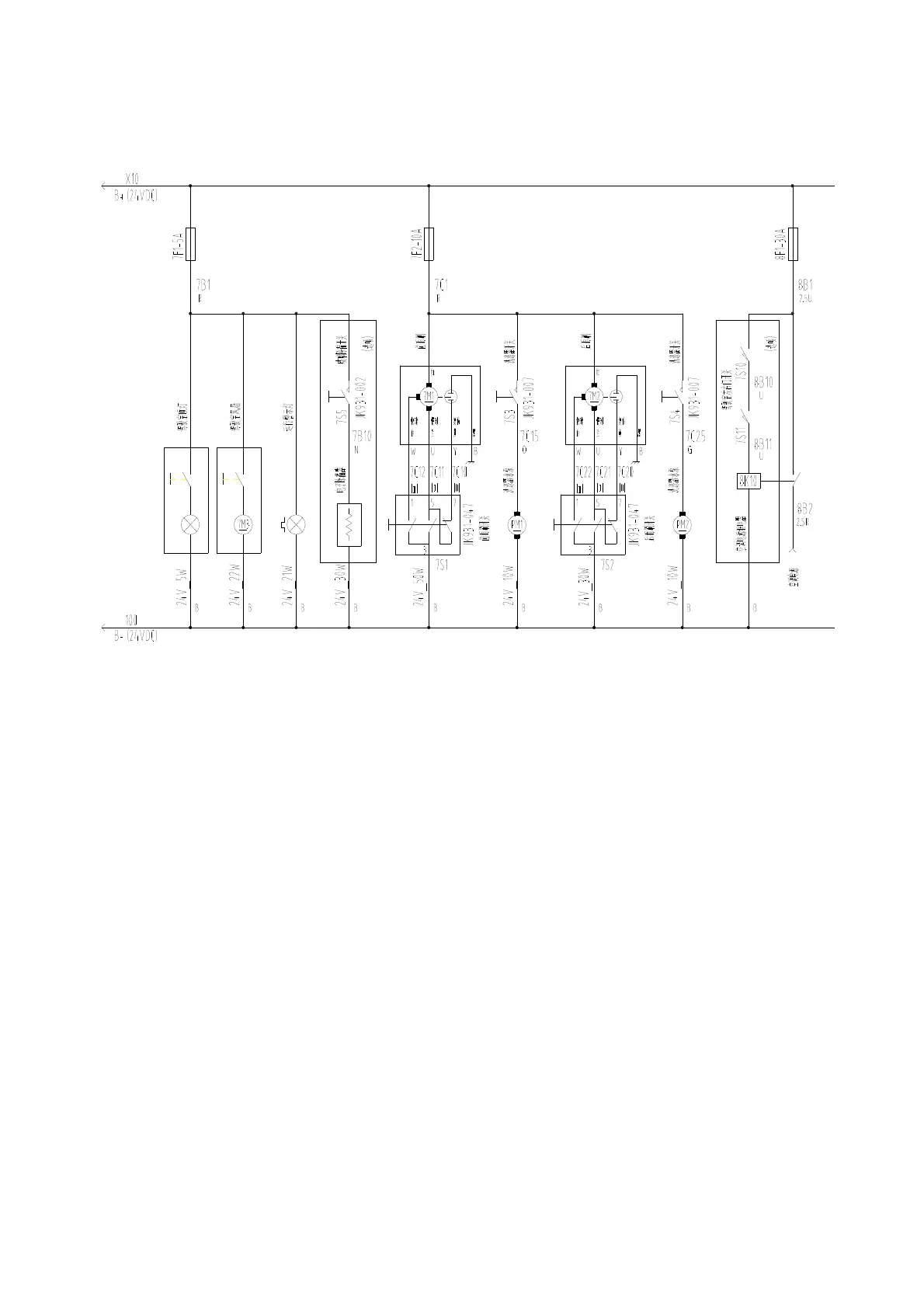

Fig.7-5 Electric Principle Drawing of Cab
(8) Air-condition
It can be cold and warm ,it changes temperature in the cab.
7.3 Brief Explanation for operation
7.3.1 Starting
There is a starting protection circuit in the shiftlever the forklift truck. You have
to shift the shiftlever in neutral before you start the engine. Otherwise, you can not
start the engine.
Turn the key switch anti-clockwise to the “H”position (pre-heating position),the
air of the engine is heated to benefit for starting. Turn the key switch clockwise to the
first“on”position, the instrument circuit and the ignition circuit are ready for work.
The key switch as follows:
