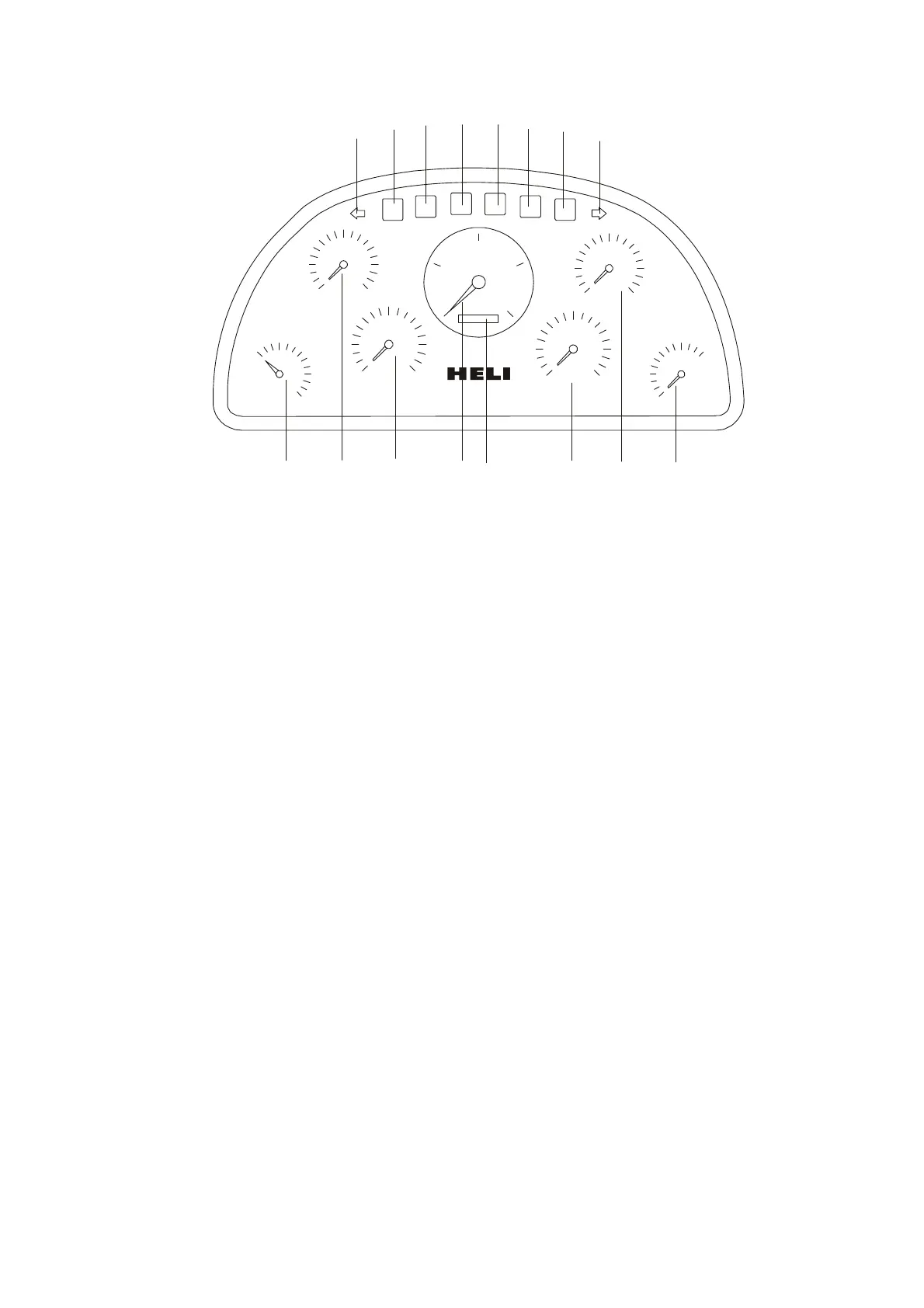

(1)Voltage Meter (2)Oil Temperature Meter of the tor-con
(3)Brake Pressure Meter (4)Hour Meter
(5)Speed Meter (6)Oil Pressure of the tor-con
(7)Water Temperature Meter (8)Fuel meter
(9)Left Turning lamp (10)Brake signal
(11)Charging Signal (12)Oil Pressure Signal
(13)Manual/autometic alternative Signal
(14)Alarm lamp of Braking oil pressure low
(15)the headlights on full beam (16)Right Turning lamp
Fig.7-7 Combination M/T DS-ZB208eter
(16) Operation of Air-condition.
The right alternative switch on the control panel is the function alternative switch,
you can alternate the heat position or the cold, while pull the switch to the “heat” position,
the air condition is heating, while pull the switch to the “cold” position, the air condition
is cold. The left alternative switch on the control panel is the wind speed alternative
switch,Ⅰis the low speed,Ⅱ is the middle speed, Ⅲ is the high speed, the wind speed
more higher, the
noise of wind is more bigger.
