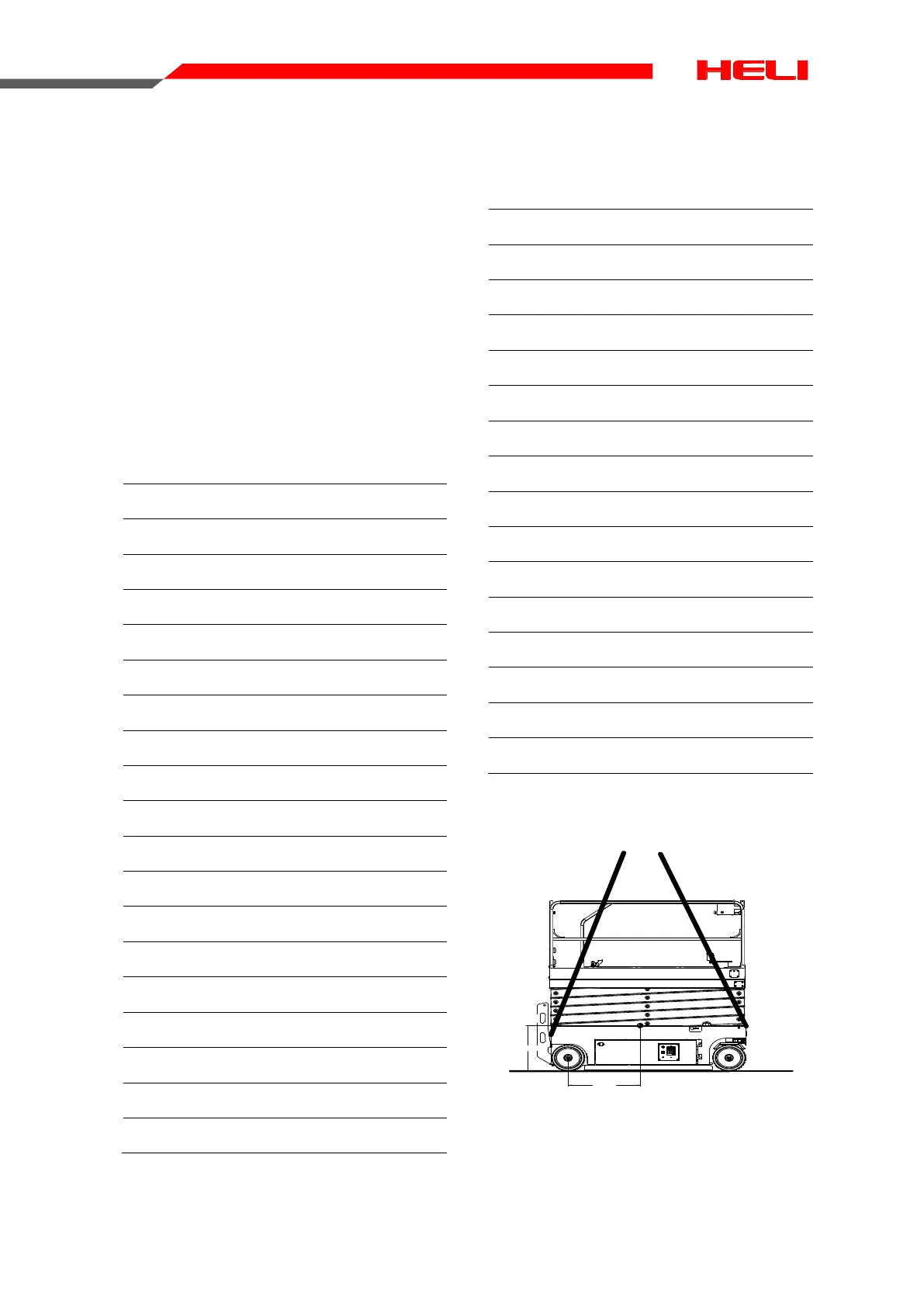

Transporting And Lifting Instructions
Lifting instruction
Fully lower the platform. Be sure the extension
deck, controls and component trays are secure.
Remove all loose items on the machine.
Determine the center of gravity of your ma-
chine using the table and the picture on this
page.
Attach the rigging only to the designated lifting
points on the machine. There are two lifting
holes in each end of the machine.
Adjust the rigging to prevent damage to the
machine and to keep the machine level.
Core X axis Y axis
JS0407NE 49.9cm 48.1cm
JS0407NELi 49.9cm 48.1cm
JS0607 63.2cm 53.4cm
JS0607Li 63.2cm 53.4cm
JS0607E 64.8cm 53.3cm
JS0607ELi 64.8cm 53.3cm
JS0607W 64.4cm 52.7cm
JS0607WLi 64.4cm 52.7cm
JS0607WE 65.7cm 52.6cm
JS0607WELi 65.7cm 52.6cm
JS0808 96.2cm 46.4cm
JS0808Li 96.2cm 46.4cm
JS0808E 96.2cm 46.4cm
JS0808ELi 96.2cm 46.4cm
JS0612
90.6cm 62.7cm
JS0612Li 90.6cm 62.7cm
JS0612E 90.6cm 62.7cm
JS0612ELi 90.6cm 62.7cm
JS0812
85.5 cm 59.8cm
JS0812LI 85.5 cm 59.8cm
JS0812E 85.5 cm 59.8cm
JS0812ELi 85.5 cm 59.8cm
JS1012 83.3cm 64.6cm
JS1012Li 83.3cm 64.6cm
JS1012E 83.3cm 64.6cm
JS1012ELi 83.3cm 64.6cm
JS1212 85.0cm 73.4cm
JS1212Li 85.0cm 73.4cm
JS1212E 85.0cm 73.4cm
JS1212ELi 85.0cm 73.4cm
JS1414 102.7cm 64.8cm
JS1414Li 102.7cm 64.8cm
JS1414E 102.7cm 64.8cm
JS1414ELi 102.7cm 64.8cm
Y-Axis
X-Axis
Chassis
Lifting
Points(2)
Chassis
Lifting
Points(2)
