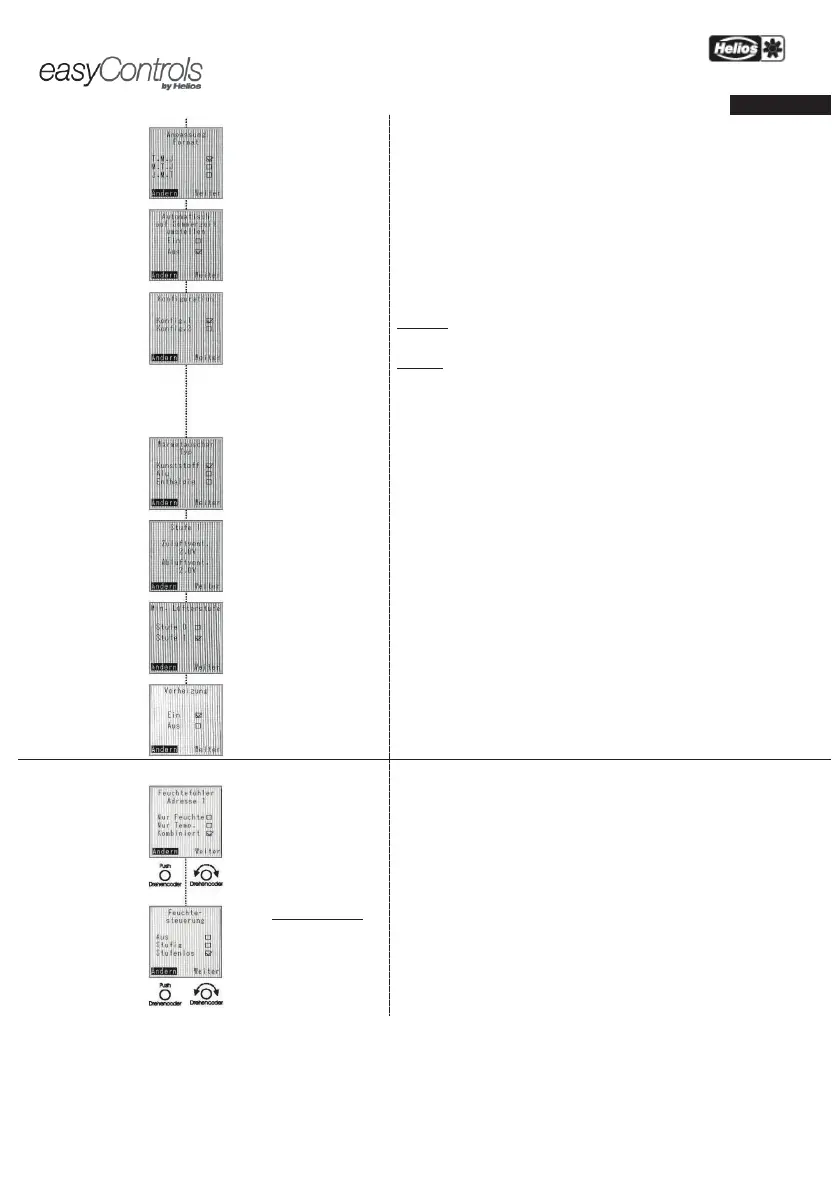

Format adjustment:
Automatic
su
mmer/winter
time
Configuration of
ventilation unit
Heat exchanger
type
:
Fan stages
1-4:
Minimum fan
stage
:
Preheater
:
Options
: DD.MM.YYYY; MM.DD.YYYY; YYYY.MM.DD
Action
: When checkbox „On” is activated, the summer-/
wintertime changeover will
take place automatically
. When checkbox „Off” is activated,
the time will not be
automatically adjusted
.
The control behaviour of the
KWL ventilation
unit can be adjusted via unit
configuration
. There are two different configurations:
1 = DIBT:
The heat exchanger frost protection is activated at < - 0 °C
outside air
temperature
and ensured by the (optional) preheater or air volume reduction
. In
case of a supply air temperature of
< +5 °C, the fans are switched off.
2 =
PHI: The heat exchanger frost protection is activated at < -3 °C
outside air
temperature
(PHI specification) and
ensured by the preheater stipulated by the
Passivhaus
-Institute. In case of a supply air temperature of < +5 °C,
the fans are
switched off
.
O
ptions: „Plastic”, „Aluminium” or „Enthalpy”
Extract air
: Control voltage of extract/outgoing air fan
Supply air
: Control voltage of supply/outside air fan
The fan stages can be adjusted
via the „System settings” menu (Password
: 0103)
under the
heading „Fan stages” once the initial start-up is complete
Options
:
Stage
0 = Switch-off function can be activated
St
age 1 = Switch-off function cannot be activated (min. FS 1)
(Factory setting
: Stage 1)
Options
: Use preheater „On” or „Off”
(Factory
setting: On)
HUMIDITY
CONTROL
(only displays if a
humidity sensor is
connected
!)
Required settings
Only humidity
:
Only temperature:
C
ombined:
Options
: The status of the humidity control can be configured to
„Off
”, „Stepped” or „Continuous“.
„Off
” Humidity control deactivated
„St
epped” Humidity control active with stepped control logic
„Continuous
” Humidity control active with continuous control logic
Depending on the humidity level
, the fans are continuously regulated (
fan stages
0
-1-2-3-4) between voltage stage 0 and voltage stage 4.
The percentage control is
displayed on the web server page
or on the comfort controller KWL-BEC
(Factory
setting: Continuous)
.
Only the humidity value is transferred to the
humidity control,
the room
temperat
ure is not used for the auxiliary heating control.
Only the room temperature is transferred to the auxiliary heating control, die
humidity values are
not used for the humidity control.
Both the humidity value
and the room temperature are transferred to the
respective controls
.
(Factory setting: Combined)
