HELIX DARK BLUE FIVE - Speaker Connections; 5-Channel and 4-Channel Speaker Setup; 3-Channel and 2-Channel Speaker Setup; Fully Active Speaker Configuration

SIGNAL INPUT CONNECTIONS 5-/4-/2-CHANNEL MODE

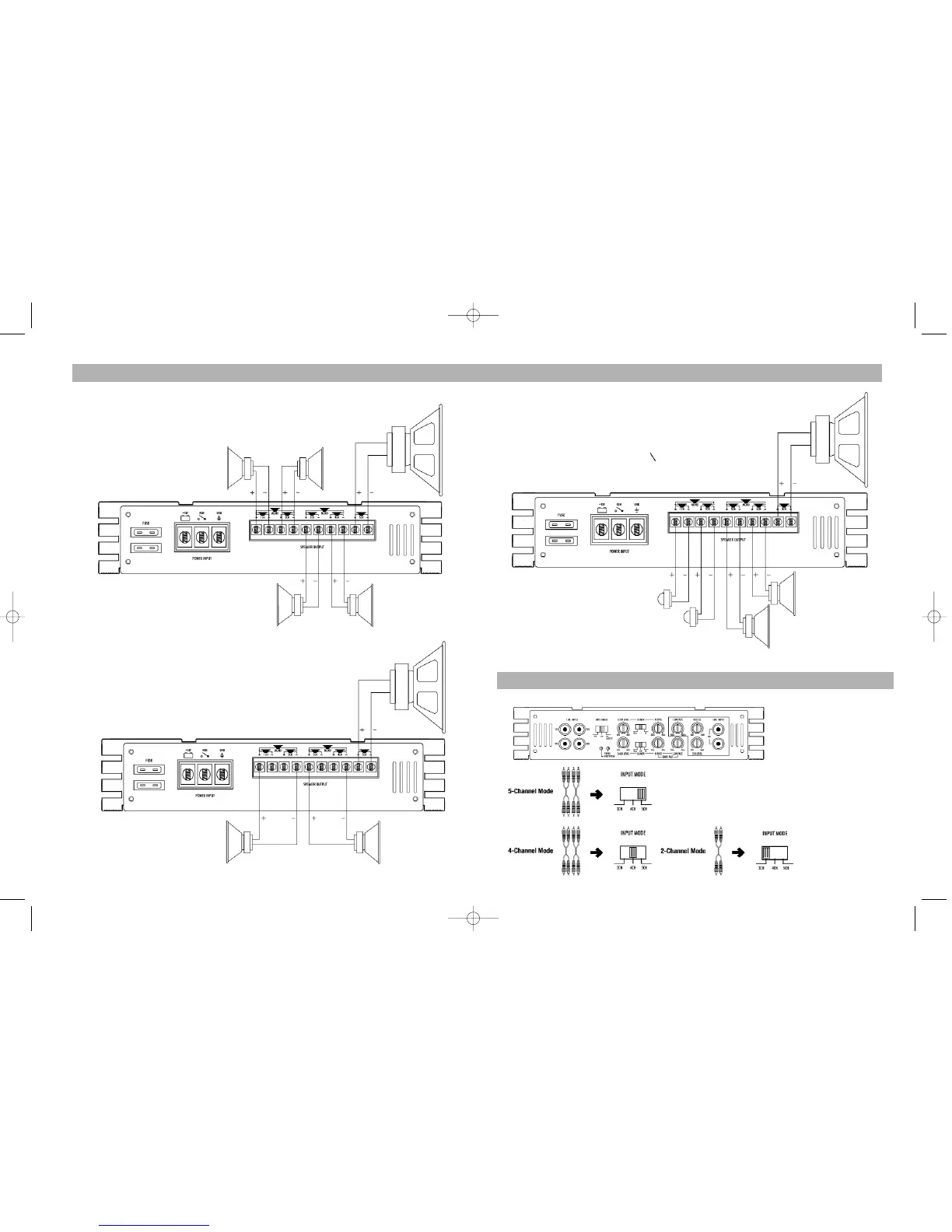

SPEAKER CONNECTIONS
5-channel mode
4-channel + subwoofer
3-channel mode
2-channel + subwoofer
Fully active mode
2 way active + subwoofer
7
2 - 4 Ohms
2 - 4 Ohms
2 - 4 Ohms
4 Ohms
2 - 4 Ohms
Channel 3 + 4 mid/bass 2 - 4
Ohms
Bandpass between 50 Hz and 4
kHz
Control 13 on BP
Control 10 LP
Control 12 HP
Channel 1 + 2 tweeter 2 - 4 Ohms
Control 14 on HI
Control 11 on required frequency
Frequency range 50 Hz - 4 kHz
