Woofer installation
Main features
Component systems
mid/bass speaker with injected cone
25 mm soft dome tweeter with silk edge
separate frequency crossover with integrated
tweeter protection
solid grille for effective speaker protection
Coaxial systems
mid/bass speaker with injected cone
integrated 13 mm mylar tweeter
integrated tweeter protection
solid grille for effective speaker protection
DB 69.1:
16 x 23 cm mid/bass speaker with injected cone
integrated 50 mm mylar midrange speaker
integrated 19 mm silk dome tweeter
integrated tweeter protection
CAUTION:
Make sure that all speaker wiring is fully protec-
ted from cutting or wear. Any short circuits deve-
loping as a result could severely damage the
radio/cassette unit or amplifier. Make sure that
all speaker wires easily reach the speaker termi-
nals with stress on the wire or connectors.
Securing the loudspeaker
Once you have tested the complete speaker system and
have confirmed correct operation, turn the audio system
off and prepare the loudspeaker for final mounting.

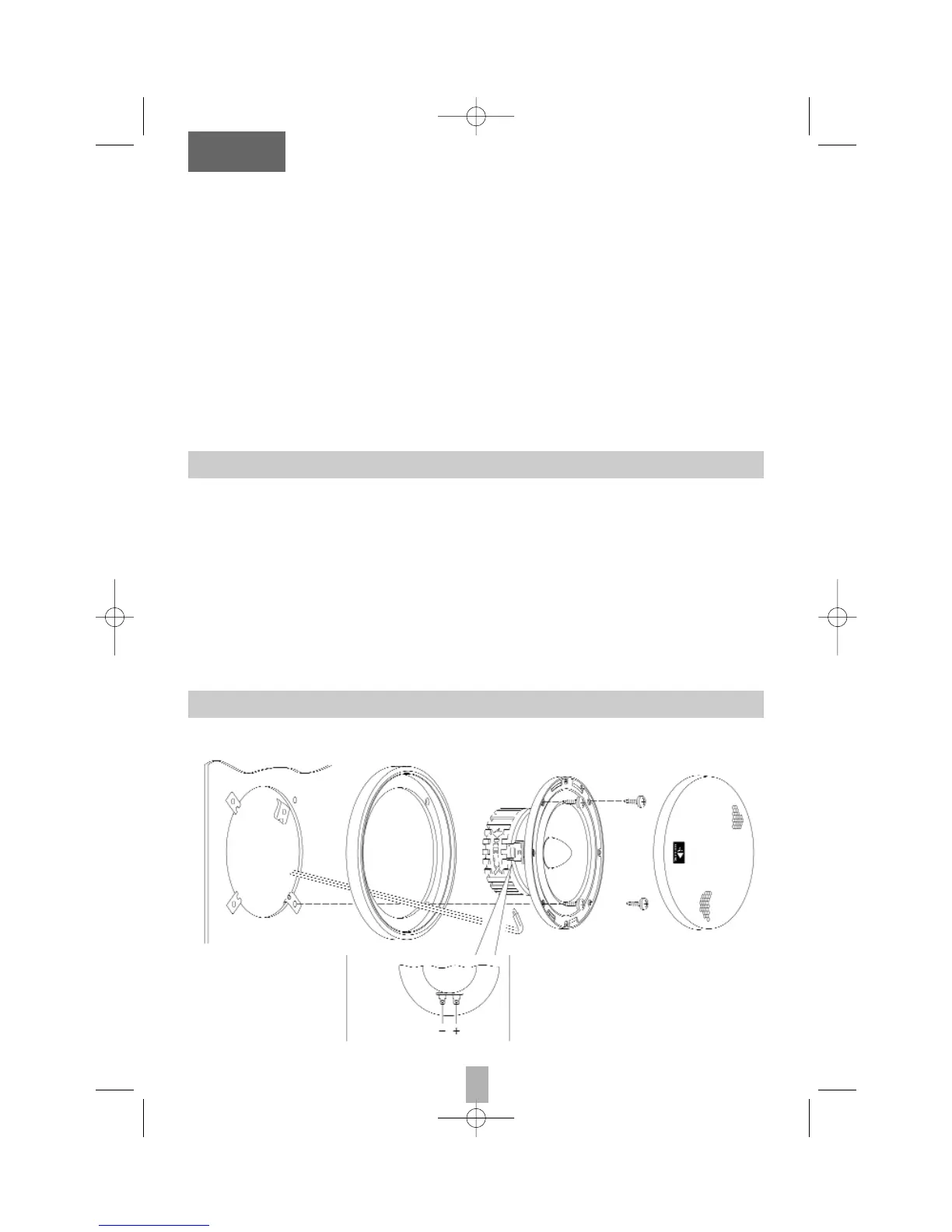

1.Place the loudspeaker within the mounting ring as
shown in the illustration below.
2. Position the loudspeaker assembly into the mounting
hole and confirm correct mounting screw hole location.
Proceed to insert mounting screws through the loudspe-
aker mounting assembly and use the provided screw
clips to capture the screw. Tighten all screws evenly.
3. Place the speaker grille within the basket and moun-
ting ring and make sure the grille makes contact with
the grille mounting adhesive.
