HELIX M FOUR User Manual

12

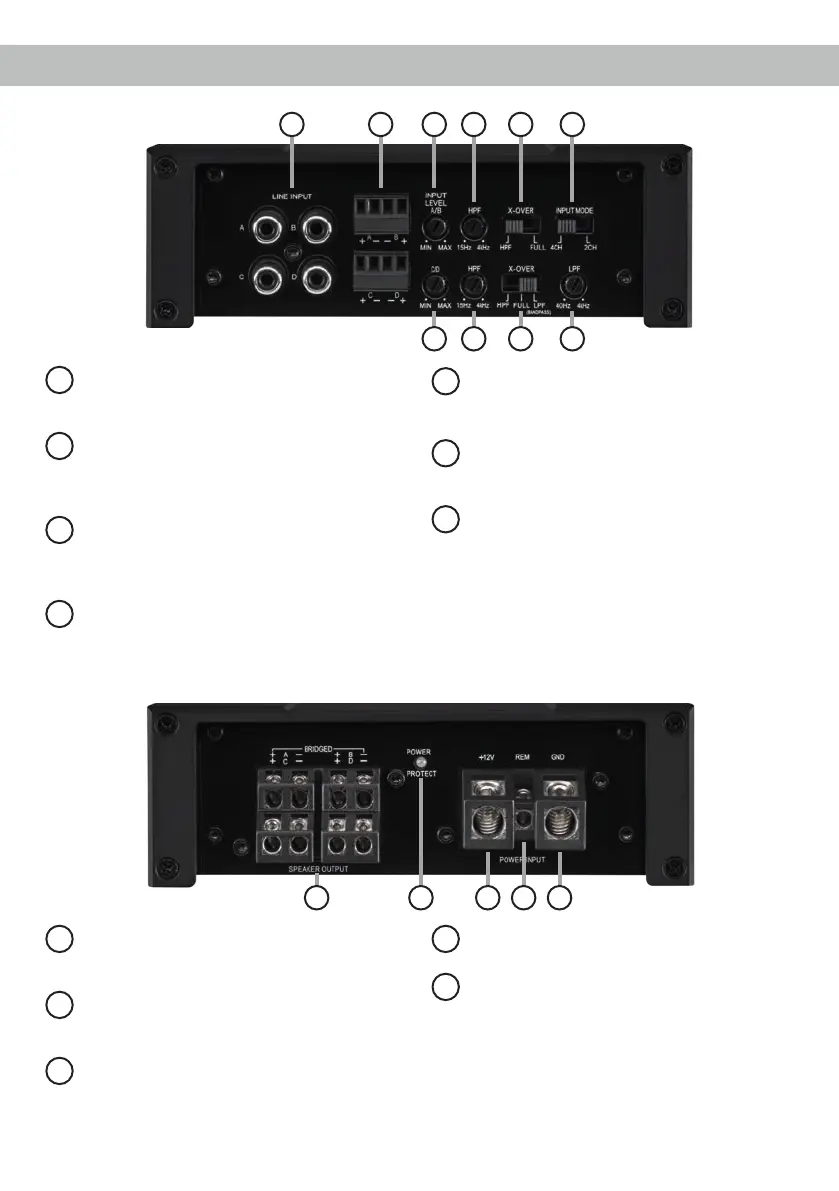

Connectors and control units
8
Speaker Output
Speaker outputs for connecting speaker
systems.
9
Power & Protect LED
This LED indicates the operating mode of the
amplier.
10
+12 V
Connector for the +12 V power cable of the
positive terminal of the battery.
11
REM
Connector for the remote cable.
12
GND
Connector for the ground cable (negative
terminal of the battery or metal body of the
vehicle).
1
Line Input
RCA inputs for connecting lowlevel line
signals.
2
Highlevel Input
Highlevel speaker inputs for connecting a
factory radio or an aftermarket radio without
lowlevel line outputs.
3
Input Level
Control for adjusting the input sensitivity of
the lowlevel Line and Highlevel Inputs for the
individual stereo signals.
4
HPF
Control for adjusting the highpass lter from
15 Hz to 4,000 Hz.
5
X-Over
Switch for activating the lters for each
channel pair.
6
Input Mode
Switch to route input signals to respective
amplier channels.
7
LPF
Control for adjusting the lowpass lter of the
channels C and D from 40 Hz to 4,000 Hz.
9 10 11 128
1 2 53 4 6
3 4 5 7
