29
HELIX Extension Card slot (HEC slot)
It is possible to extend the functionality of the
HELIX P SIX DSP ULTIMATE by inserting an op-
tional HELIX Extension Card (HEC) – for exam-
ple a High Denition Bluetooth
®
Audio Streaming
module, a High Resolution Audio USB soundcard
etc.
To install a HELIX Extension Card it is nec-
essary to remove the side panel of the
P SIX DSP ULTIMATE and replace it by the new
side panel that comes with the HEC module.
Attention: Install the HEC module only in the
designated device and its specic slot. Using
the HEC module in other devices or slots can
result in damage of the HEC module, the am-
plier, the head unit / car radio or other con-
nected devices!
Read in the following the steps how to install a
HEC module:
1. First disconnect all cables from the device.
2.
Remove the bottom plate by loosening the 10
Allen screws.
3.
Then dismantle the side panel where the Line
Inputs are located by removing the two Allen
screws and the three Phillips screws.
4. Prepare the module for installing it into the de-
vice. Any further mounting information will be
found in the instruction manual of the respec-
tive HEC module.

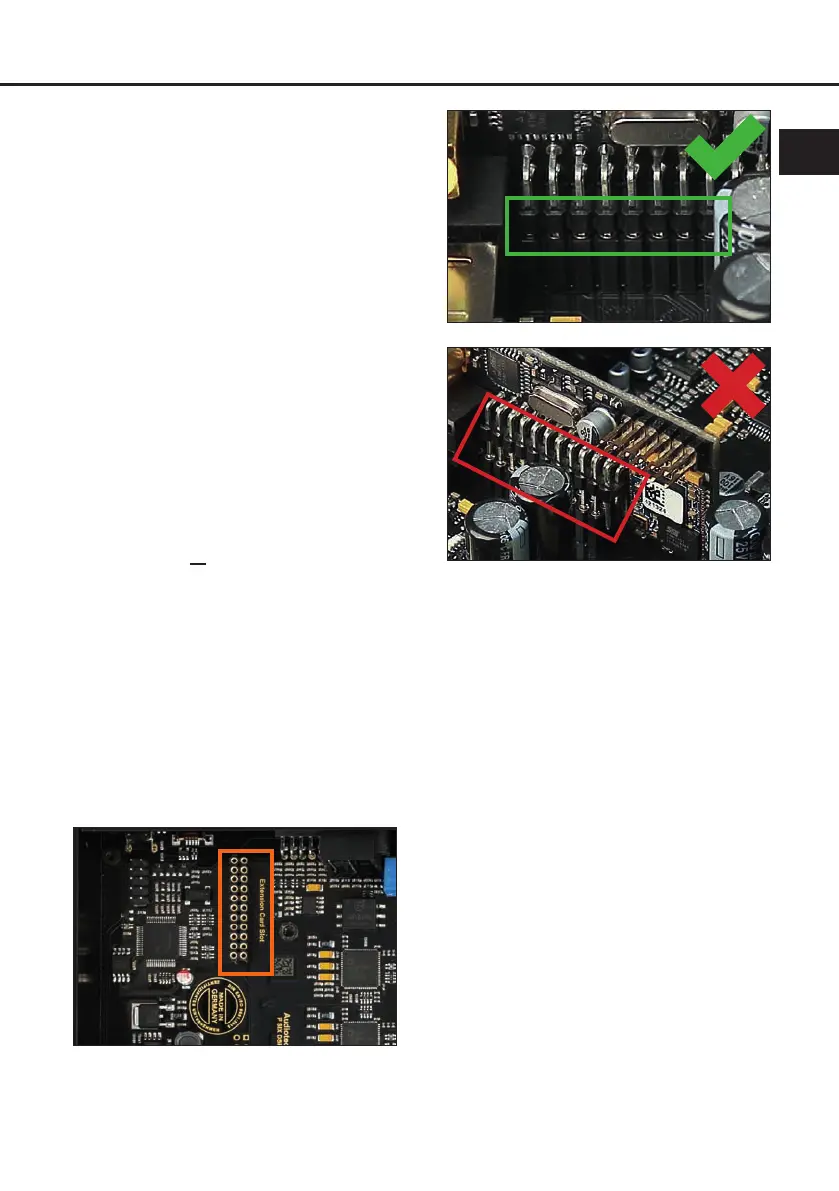

5. Insert the HEC module into the specic slot
of the device which is marked in the following
picture.
6. Make sure that the HEC module is installed
properly and all pins are fully inserted into the
socket.
7. Fix the new side panel which is delivered with
the Extension Card using the Allen screws
and the Phillips screws. Then mount the base
plate again.
8. Bolt the HEC module to the side panel. Pre-
cise mounting information will be found in
the instruction manual of the respective HEC
module.
9. Reconnect all cables to the device.
10. Turn on the amplier. The HEC module is
automatically detected by the device and
the Status LED of the HEC module lights up
green.
11. Now you are able to congure the HEC mod-
ule in the DSP PC-Tool software.
