Hellenbrand E3 - Drain Line Components

14









DRAIN LINE - 3/4”
DRAIN LINE - 1”







Systems are shipped without 3/4” nut for drain elbow (polytube
installation only) and 5/8” polytube insert (polytube installation only).
1 101414 Elbow Locking Clip 1
2-8 101636
Drain Ftg, 1” Straight Asy-No Vent 1
3* 101244 Drain Ftg Body, 1” 1
4* 101160 Drain Ftg Adapter, 1” 1
5* 102153 O-ring 019 1
6* 102437 Split Ring 1
7* 102141 Nut, 1” QC 1
8* 102165 O-ring 215 1
9 101599 DLFC 9.0 gpm for 1”
101562 DLFC 10.0 gpm for 1” One
101564 DLFC 11.0 gpm for 1” DLFC
101567 DLFC 13.0 gpm for 1” must be
101568 DLFC 15.0 gpm for 1” used if
101571 DLFC 17.0 gpm for 1” 1” tting
101578 DLFC 20.0 gpm for 1” is used
101580 DLFC 25.0 gpm for 1”
QTY.
ITEM NO.
ORDER NO.
DESCRIPTION
See System Specications DLFC on page 18, for correct DLFC
size for your unit.
See System Specications DLFC on page 18, for correct DLFC size for
your unit.
The nuts and caps are designed to be unscrewed or tightened by hand or
with the special plastic wrench. If necessary a pliers can be used to un-
screw the nut or cap. Do not use a pipe wrench to tighten or loosen nuts or
caps. Do not place screwdriver in slots on caps and/or tap with a hammer.
Do not use pipe dope or other sealants on threads. Teon tape must be
used on threads of the 1” NPT connection and on the threads for the drain
line connection. Teon tape is not necessary on the nut connection nor
caps because of o-rings seals.

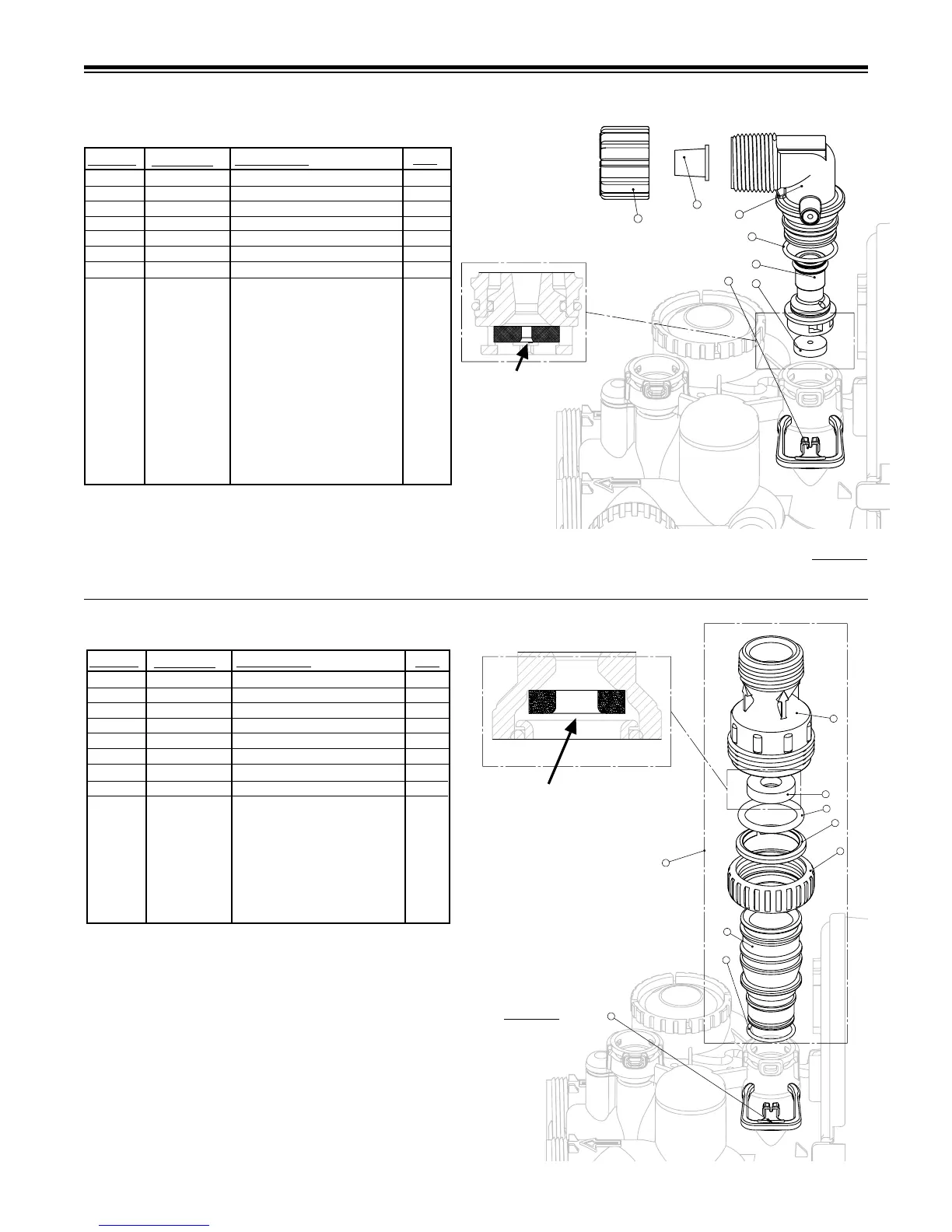

Figure 17
Figure 18
1 101414 Elbow Locking Clip 1
2 101871 Polytube Insert, 5/8” Optional
3 102131 Nut, 3/4” Drain Elbow Optional
4-6 101618 Drain Elbow 3/4” Male Assy-Vent Optional
4-6 101619
Drain Elbow 3/4” Male Assy-No Vent 1
5 102153 O-ring 019 1
6 102406 DLFC Retainer Assy. 1
7 101551 DLFC 0.7 gpm for 3/4” 1
101552 DLFC 1.0 gpm for 3/4”
101556 DLFC 1.3 gpm for 3/4” One
101559 DLFC 1.7 gpm for 3/4” DLFC
101574 DLFC 2.2 gpm for 3/4” must
101577 DLFC 2.7 gpm for 3/4” be used
101583 DLFC 3.2 gpm for 3/4” if 3/4
101588 DLFC 4.2 gpm for 3/4” tting
101591 DLFC 5.3 gpm for 3/4” is used
101593 DLFC 6.5 gpm for 3/4”
101595 DLFC 7.5 gpm for 3/4”
101598 DLFC 9.0 gpm for 3/4”
101561 DLFC 10.0 gpm for 3/4”
QTY.
ITEM NO.
ORDER NO.
DESCRIPTION
Rounded Edge
This Side
Rounded Edge
This Side
