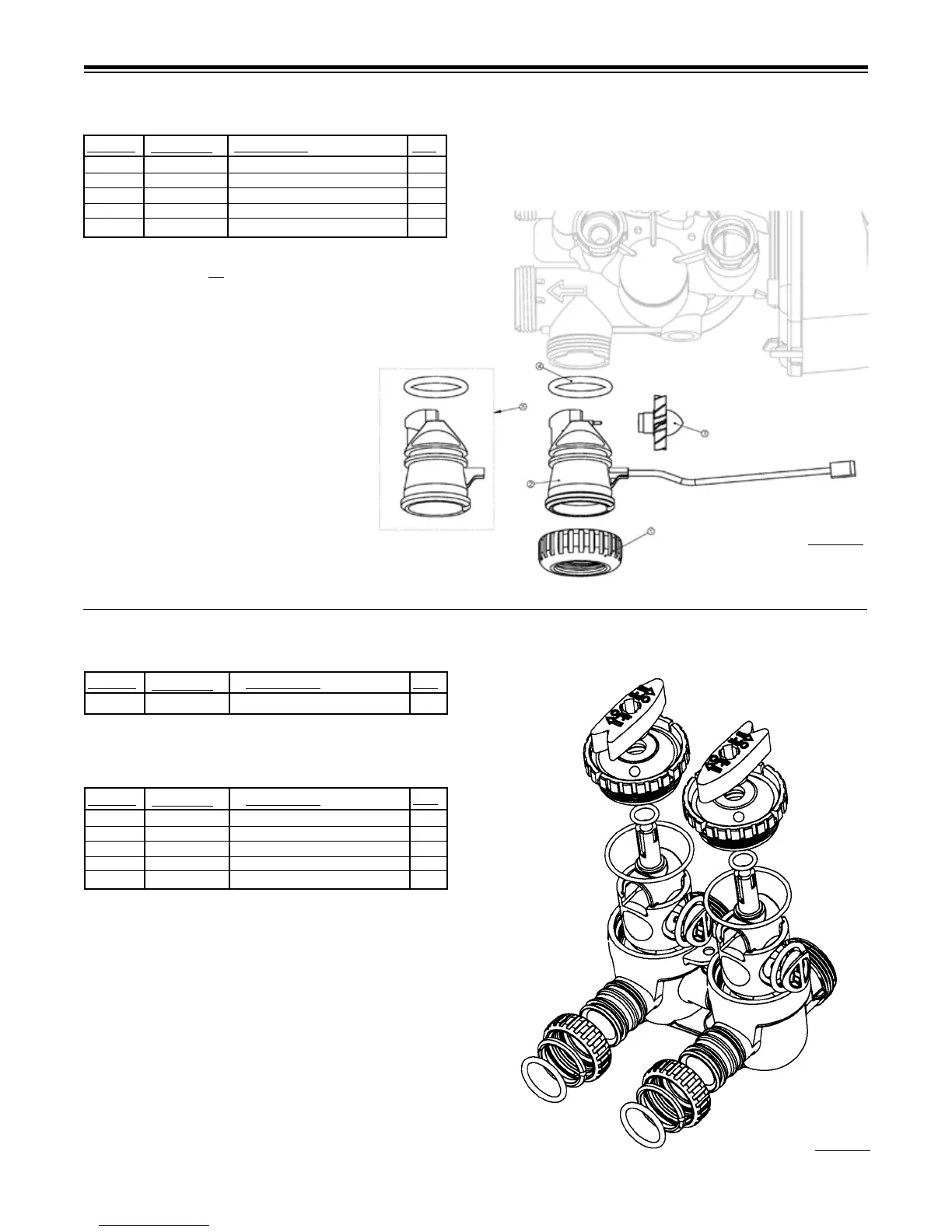

Hellenbrand E3 - Meter and Bypass Valve Components

15
WATER METER AND METER PLUG
1 102141 Nut 1” QC 1
2-4 102051* Meter Assy. 1
3 102687 Turbine Assy. 1
4 102165 O-ring 215 1
5 102321 Meter Plug Assy.** 1
QTY.
ITEM NO.
ORDER NO.
DESCRIPTION
*Order number 102051 includes 102687 and 102165, which are item
numbers 3 & 4.
**Only used if metering is not to be done (time clock units)
The nuts and caps are designed to be unscrewed or tightened by hand or
with the special plastic wrench. If necessary a pliers can be used to un-
screw the nut or cap. Do not use a pipe wrench to tighten or loosen nuts or
caps. Do not place screwdriver in slots on caps and/or tap with a hammer.
Figure 19
Figure 20
Not Shown 101172 Bypass 90º Vert. Assy.
1 102141 Nut 1” Quick Connect 2
2 102437 Split Ring 2
3 102165 O-Ring 215 2
11* 101172 Bypass Vertical Adpt. Assy. 2
BYPASS VALVE
*11 (Not Shown)
The nuts and caps are designed to be unscrewed or tightened by hand or
with the special plastic wrench. If necessary a pliers can be used to un-
screw the nut or cap. Do not use a pipe wrench to tighten or loosen nuts or
caps. Do not place screwdriver in slots on caps and/or tap with a hammer.
Do not use pipe dope or other sealants on threads. Teon tape must be
used on threads of the 1” NPT connection and on the threads for the drain
line connection. Teon tape is not necessary on the nut connection nor
caps because of o-rings seals.
QTY.
ITEM NO.
ORDER NO.
DESCRIPTION
1 101325 Complete Bypass Assembly
.
QTY.
ITEM NO.
ORDER NO.
DESCRIPTION
NOTE: Individual Bypass Components Are Not Available, Must Order
Complete Bypass Assembly.
