ITEM NO. NO. REQ'D

STANDARD EXPRESS DESCRIPTION

1 ..... 1 ..................... 6-07 ................... 6-007 .............WM1-16 TC Control Valve Assembly

..... 1 ..................... 6-08 ................... 6-008 ............. WM1-24 TCControl Valve Assembly

..... 1 ..................... 6-09 ................... 6-009 ............. WM1-32 TC Control Valve Assembly

..... 1 ..................... 6-10 ................... 6-010 ............. WM1-48 TC Control Valve Assembly

..... 1 ..................... 6-13 ................... 6-013 ............. WM1-64 TC Control Valve Assembly

..... 1 ..................... 6-14 ................... 6-014 ............. WM1-96 TC Control Valve Assembly

..... 1 .................. 6-07M ................ 6-007M .............WM1-16M Control Valve Assembly

..... 1 .................. 6-08M ................ 6-008M .............WM1-24M Control Valve Assembly

..... 1 .................. 6-09M ................ 6-009M .............WM1-32M Control Valve Assembly

..... 1 .................. 6-10M ................ 6-010M .............WM1-48MControl Valve Assembly

..... 1 .................. 6-13M ................ 6-013M .............WM1-64M Control Valve Assembly

..... 1 .................. 6-14M ................ 6-014M .............WM1-96M Control Valve Assembly

2 ..... 1 ...............101537.. Top Distributor (Included with Item#1)

3 ..... 1 .................104531 .................104530 ............. 7"x44" Tank for WM1-16(M)

..... 1 .................104535 .................104534 .............8"x44" Tank for WM1-24(M)

..... 1 .................104539 .................104538 .............9"x48" Tank for WM1-32(M)

..... 1 .................104552 .................104551 .............10"x54" Tank for WM1-48(M)

..... 1 .................104566 .................104564 .............13"x54" Tank for WM1-64(M)

..... 1 .................104465 ............................. .............14"x65" Tank for WM1-96(M)

..... 1 .................104529 ...........................................7"x35" Tank for WM1-16(M)C

..... 1 .................104532 ...........................................8"x35" Tank for WM1-24(M)C

..... 1 .................104542 ...........................................10"x35" Tank for WM1-32(M)C

4 ..... 1 ...............................................101506 .............Distributor Tube - All 35" & 44" Tanks

..... 1 ...............................................101509 .............Distributor Tube - 9" x 48" Tank

..... 1 ...............................................101513 .............Distributor Tube - 10"x54" Tank

..... 1 ...............................................101513 .............Distributor Tube - 13"x54" Tank

..... 1 ...............................................101514 .............Distributor Tube - 14"x65" Tank

5 ...... * ...............................................101107 .............Softening Resin-See pg 3 for amount

6 ...... * ...............................................100983 .............Underbedding

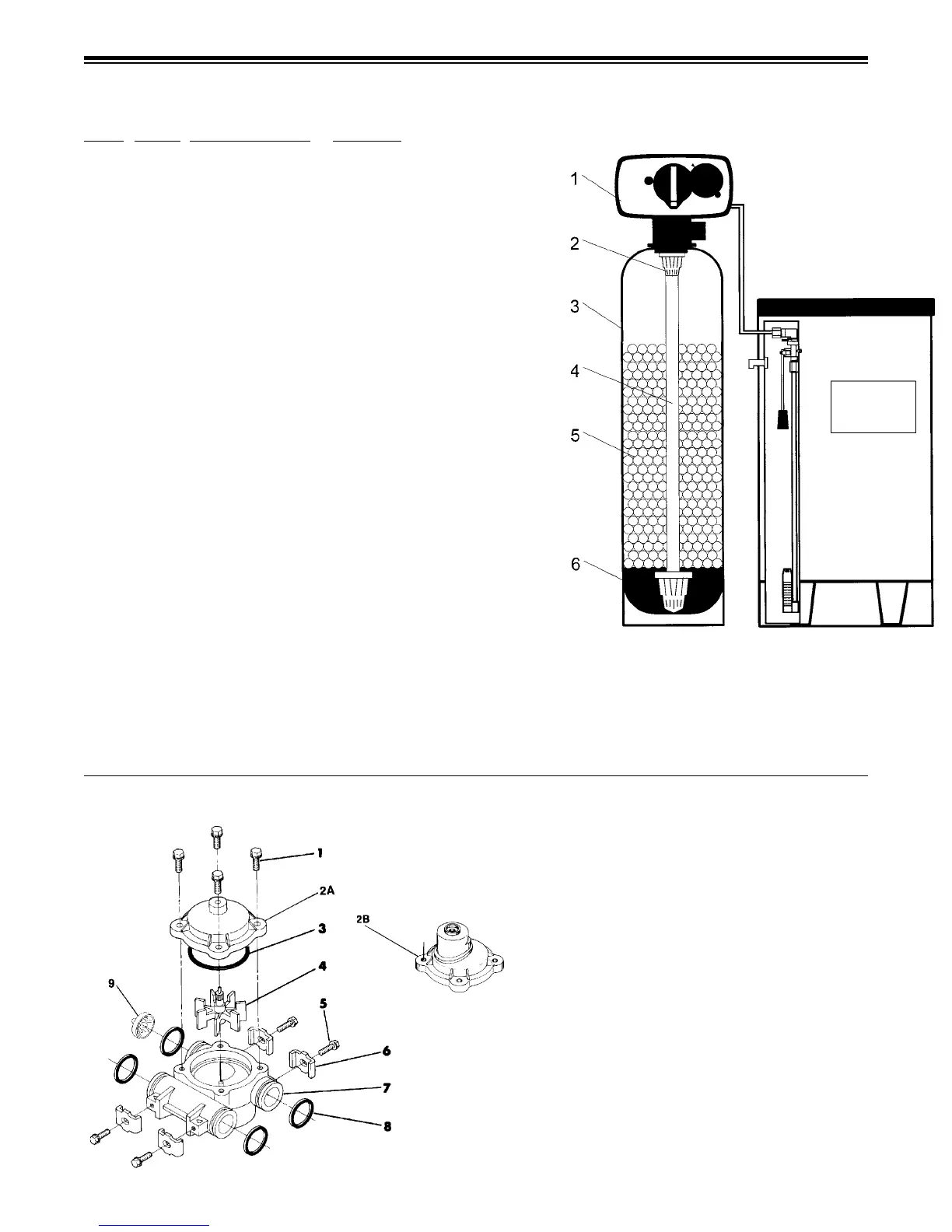

WATERMATE-1 WATER CONDITIONER AND SALT TANK ASSEMBLY

ITEM NO. NO. REQ'D

PART NO. DESCRIPTION

1 ........4 .............. 102467 ....... Screw - Meter Cover Assembly

2A ........1 .............. 101381 ....... Meter Cover Assembly

- Standard Range

2B .......1 .............. 101384 ....... Meter Cover Assembly

- Extended Range

3 ........1 .............. 102176 ....... O-ring - Meter Cover Assembly

4 ........1 .............. 101802 ....... Impeller

5 ........4 .............. 102488 ....... Screw - Adapter Clip

6 ........4 .............. 102412 ....... Adapter Clip

7 ........1 .............. 101249 ....... Meter Body

8 ........4 .............. 102162 ....... O-ring - 119 Meter Body

9 ........1 .............. 101729 ....... Flow Straightener (not shown)

(1-4,7,8) ..1 .............. 102056 ....... Complete Meter Assembly

- Standard Range

(1-4,7,8) ..1 .............. 102057 ....... Complete Meter Assembly

- Extended Range

WATERMATE METER MODULE DEMAND REGENERATION SERIES

Figure 19

Brine Tank

Components,

See Page 20
