Getting started – Single Docking Station
Connect to a PC or a LAN
Note! This procedure should be performed by a network administrator.
Important! Always keep electrical equipment turned o during connec-
tion procedures.
A Single Primary Docking Station can be connected to a LAN or to a PC
via the USB.
Note! When a Primary Docking Station is connected via a USB connec-
tion, only the TCP/IP settings can be changed. To change settings use
PDS Configuration tool or HemoCue DMS. No information can be sent
to/from an analyzer docked in the Primary Docking Station when the
Primary Docking Station is connected to a PC via USB.
A Single Secondary Docking Station can be connected directly to a PC
via the USB, but not to a LAN.

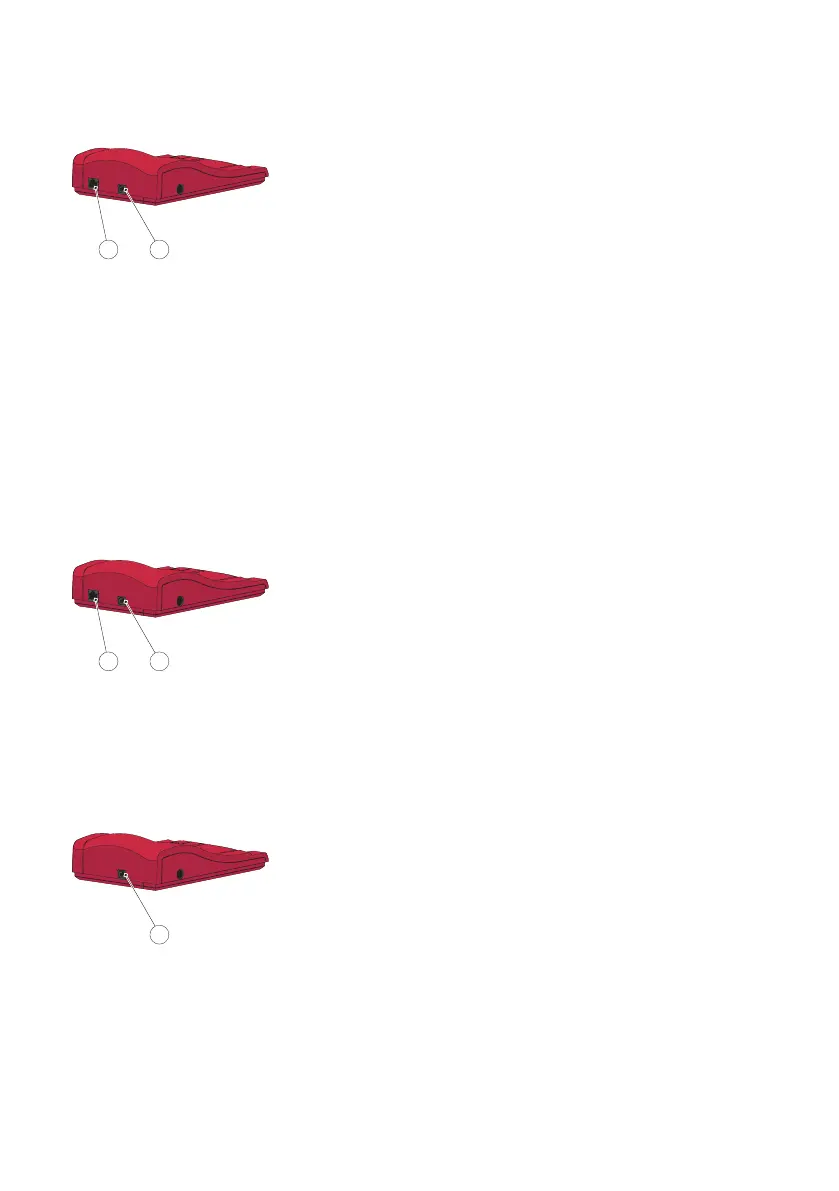

Connect Primary Docking Station to PC
To change settings on a Primary Docking Station, see section Docking
Station Settings in the Reference Manual for the HemoCue 201 DM
Systems. The Primary Docking Station must be connected to a PC
directly via the USB port.
a) Insert the USB cable into the USB port (1).
b) Insert the USB cable into the PC’s USB port
c) Connect the AC Adapter as described in section Power Source.
Note! The AC adapter must be connected after task a) and b).
Connect a Primary Docking Station to a LAN
A Primary Docking Station must be connected to a LAN for data
communication. The PC hosting the DMS Software, or an Observation
Reviewer must also be connected.
Docking Stations labelled PDS+ and SDS+ supports network
communication speed 10/100Mbps.
a) Insert one end of the Network cable into the Network port on the
Docking Station (2).
b) Insert the other end of the Network cable into a Network port on
theLAN (not directly into the PC).
c) Connect the AC Adapter as described in section Power Source.
Note! The AC adapter must be connected after task a) and b).
Connect a Secondary Docking Station to a PC
A Single Secondary Docking Station must be connected via the USB to
the PC hosting the DMS Software for data communication. No settings
can be changed in the Secondary Docking Station.
a) Insert one end of the USB cable into the USB port of the Docking
Station (1).
b) Insert the other end of the USB cable into the PC’s USB port.
1
2
1
2
1
6
