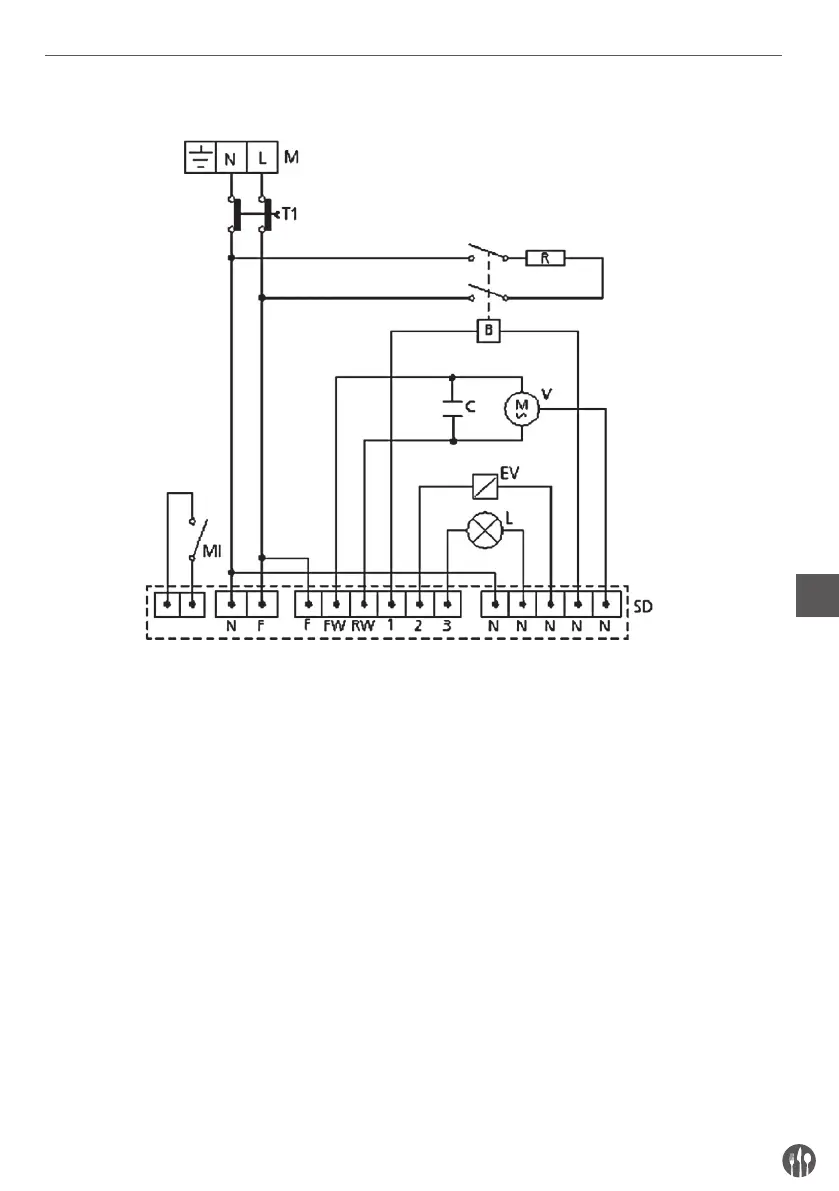

25. WIRING LAYOUTS
M Power terminal board
T1 Safety thermostat
MI Door microswitch
SD Electronic card
EV Humidifi er solenoid-valve
B Contactor coil
L Oven lighting lamp
R Circular heating-element
V Oven motorised ventilator
C Capacitor
