Component Replacement 62 17730-241
AR2
™
FOLLOW THE SAFETY GUIDELINES FOR OPERATING THE TORCH. USE CAUTION AS PARTS MAY
BE HOT.
1. Clean the open end of the
center bushing bore to
approximately 1" (25.4 mm)
depth of weld and debris.
2. From the open center bush-
ing slide the new cross tube
into both center bushings.
3. It may be necessary to use
a floor jack under one (1)
or both equalizing beams to
align the cross tube.

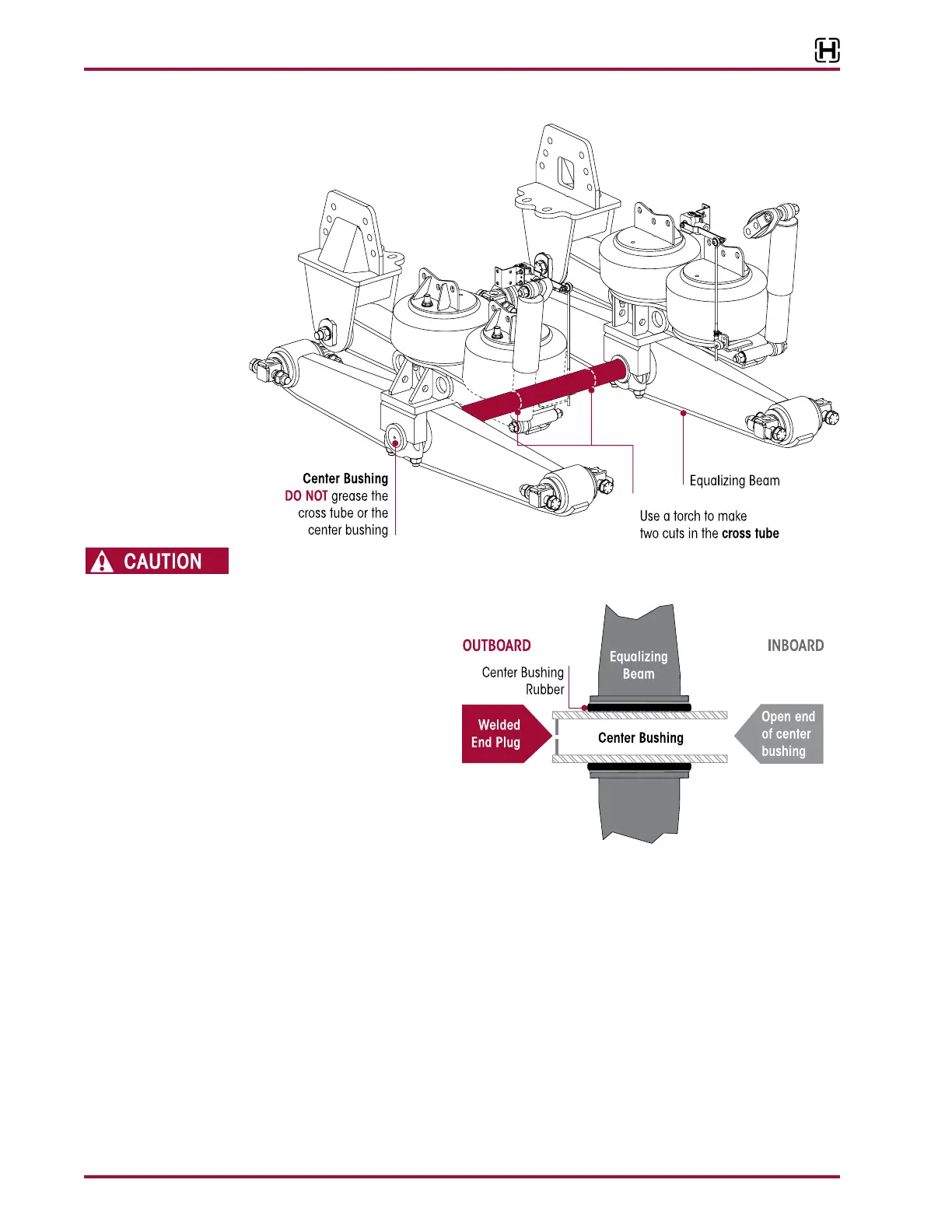

4. Position the end plug ¼" (6.35 mm) recessed in the center bushings and tack weld, see
Figure8-48.
5. Check end plug position, final weld shall be a ¼" (6.35 mm) fillet.
