Henley Arklow - Parts Identification; Servicing; Annual Service Procedure



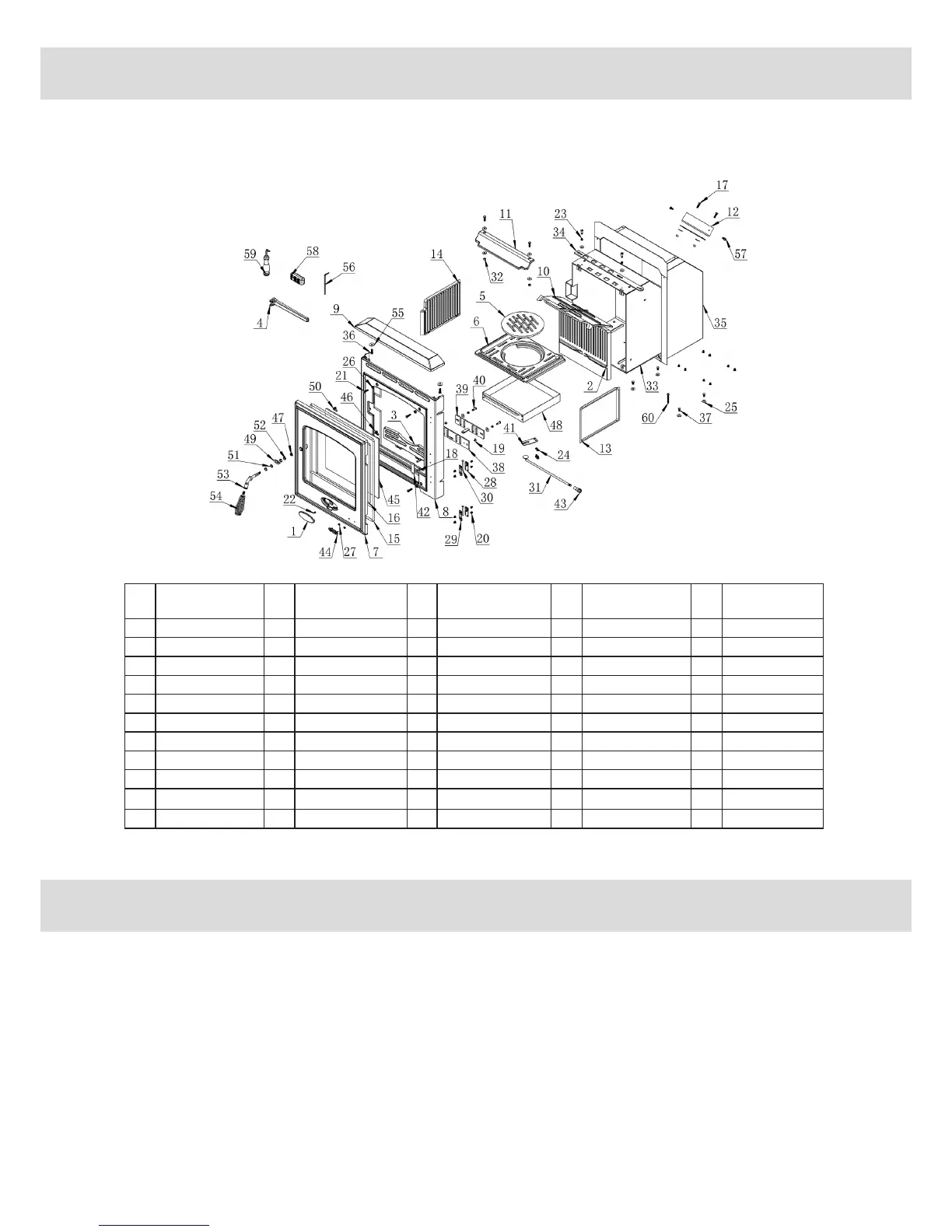

Please use the below diagram to establish the part you require for your stove. Please ensure you quote the model name and also


Parts
14 | www.henleystoves.com
Annual Service
Before the start of the heating season strip, inspect and clean the appliance as detailed:
 
 -
riod of use.
 
 
 
 
  
 
 
 
 
Servicing
Ref
No.
Description Ref
No.
Description Ref
No.
Description Ref
No.
Description Ref
No.
Description
1 Vent 12 Spigot 29 Hinge B 42 Date Plaque 53 Handle Axle
2 Back Brick 13 Right Brick 30 Hinge Axle 43 Handle 54 Spring Handle
3 Fire Fence 14 Left Brick 31 Pulling Bar 44 Badge 56 Spanner
4 Operating Tool 15 Fire Rope 32 Nut 45 Glass 57 Self Tapping
5 Moving Grate 16 Fire Rope 33 Inside Frame 46 Glass Clips 58 Spanner
6 Grate 18 Rivet 34 Air Wash Cover 47 Nut 59 Operating Tool
7 Door 23 Spring 35 Outside Frame 48 Ash Pan
8 Front 24 Spring Washer 38 Primary Air Base 49 Door Catch
9 Top 25 Washer 39 Primary Air cover 50 Bolt
10 Bale 27 Nut 40 Axle 51 Washer
11 Airwash Base 28 Hinge A 41 Blanking Plate 52 Adjusting ring
