Mobile Rope Measurement MSM 12
Henning GmbH Page 18 2.0 / 3.2009
8 Carrying-out of measurements
8.1 Installation position of the sensors in the rope
8.1.1 General conditions

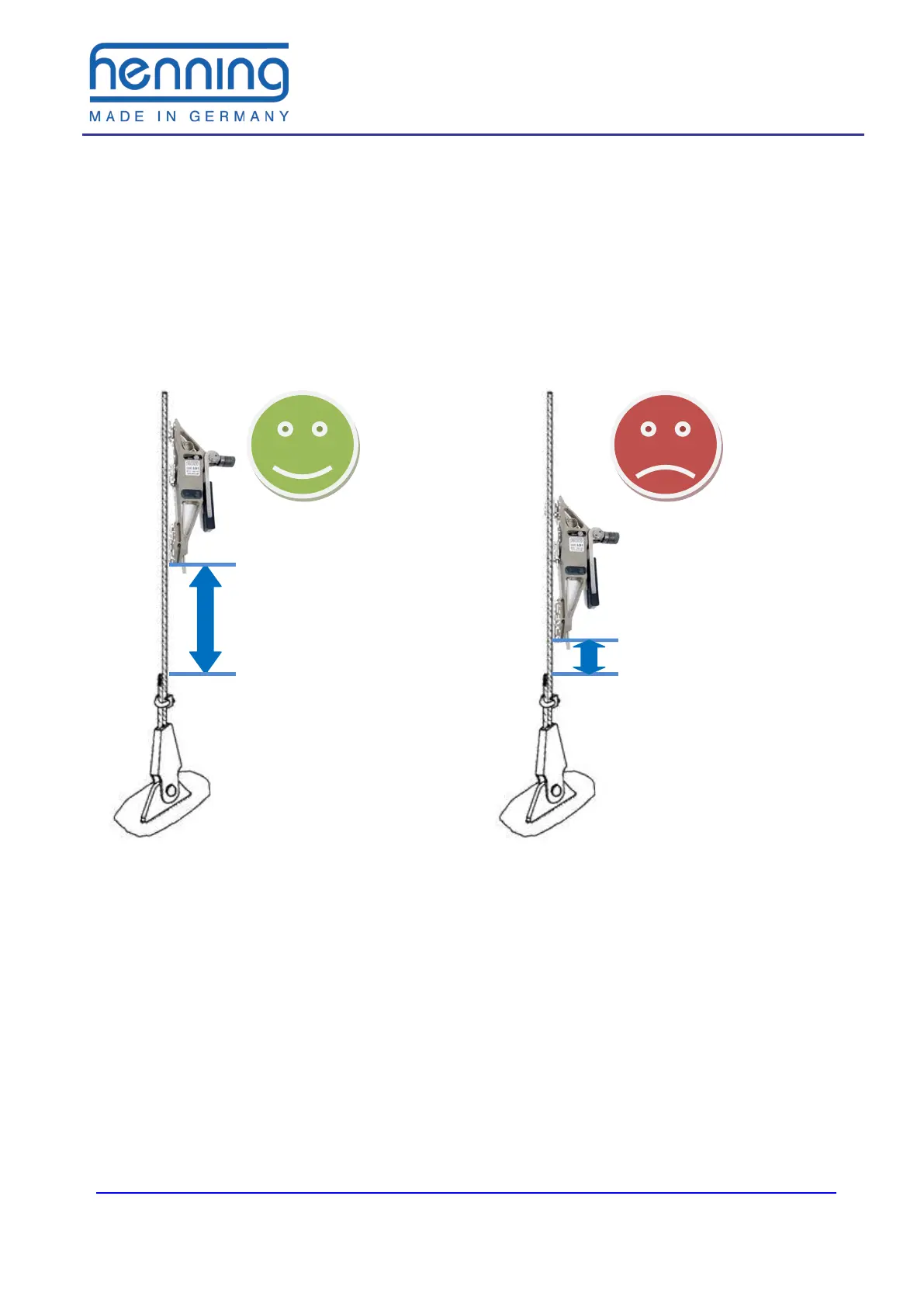

The sensors must be mounted with a minimum distance of 200 mm to the cable joint
as a not vertically running rope can distort the precision of the measured results.
For an exact measuring result the sensor may only once be clamped into the
selected rope place.
