Connectors

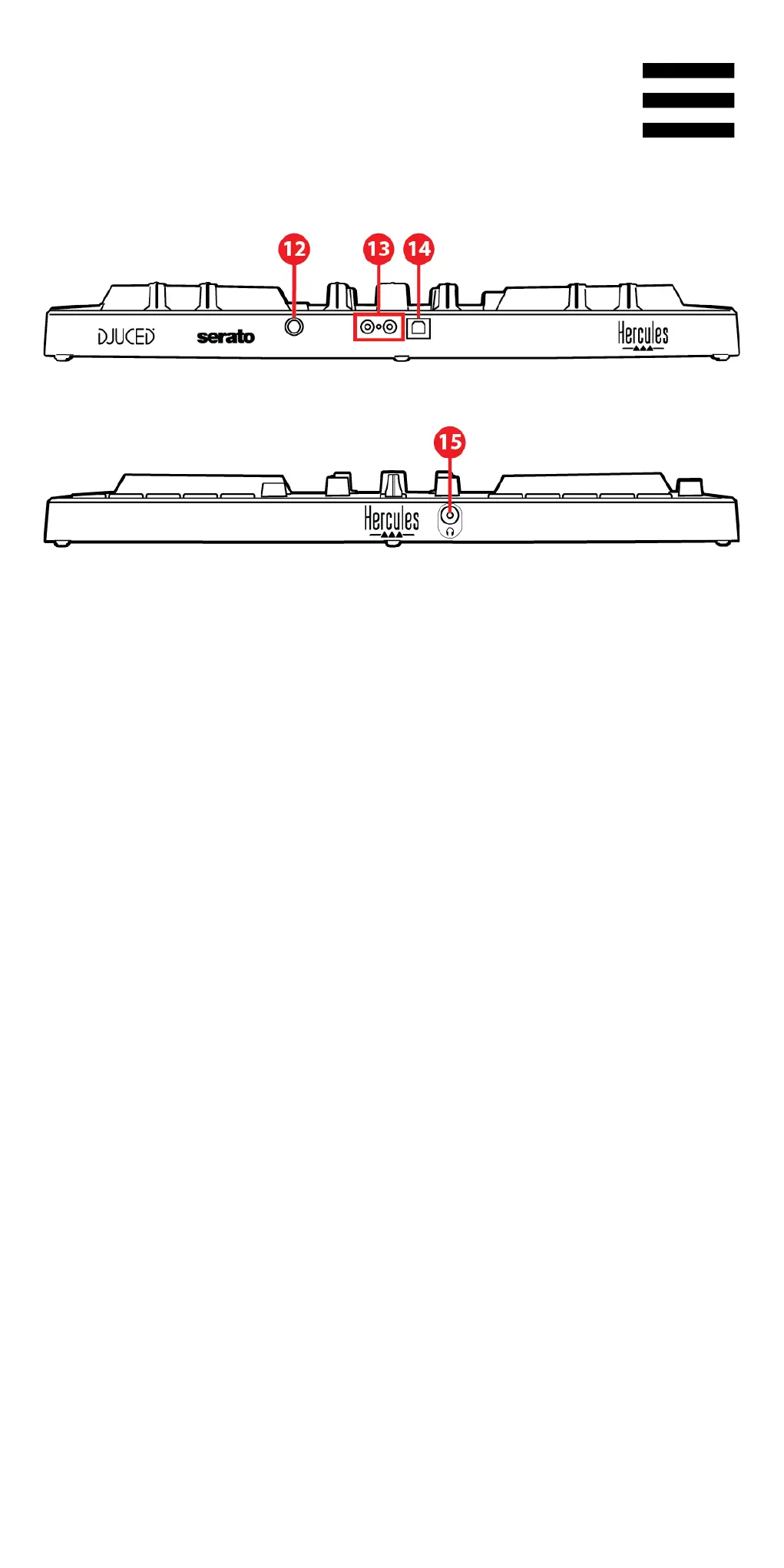

12. Proprietary Hercules expansion port
13. Master output for speakers (output 1-2)
14. USB-B 2.0 port
15. Headphones output (output 3-4)
Expansion port: lets you connect additional
accessories.
Master output for speakers (output 1-2): lets you
connect active speakers.
Format: 2 x RCA (Cinch)
USB-B 2.0 port: lets you connect the controller to a
computer.
Headphones output (output 3-4): lets you connect
headphones in order to monitor tracks.
Format: 1/8” / 3.5 mm stereo mini-jack connector
