2.2. Wired connection
1. Power off the audio source (PC, Mac®, television set, DVD player) to which you would like to connect your
speaker kit.

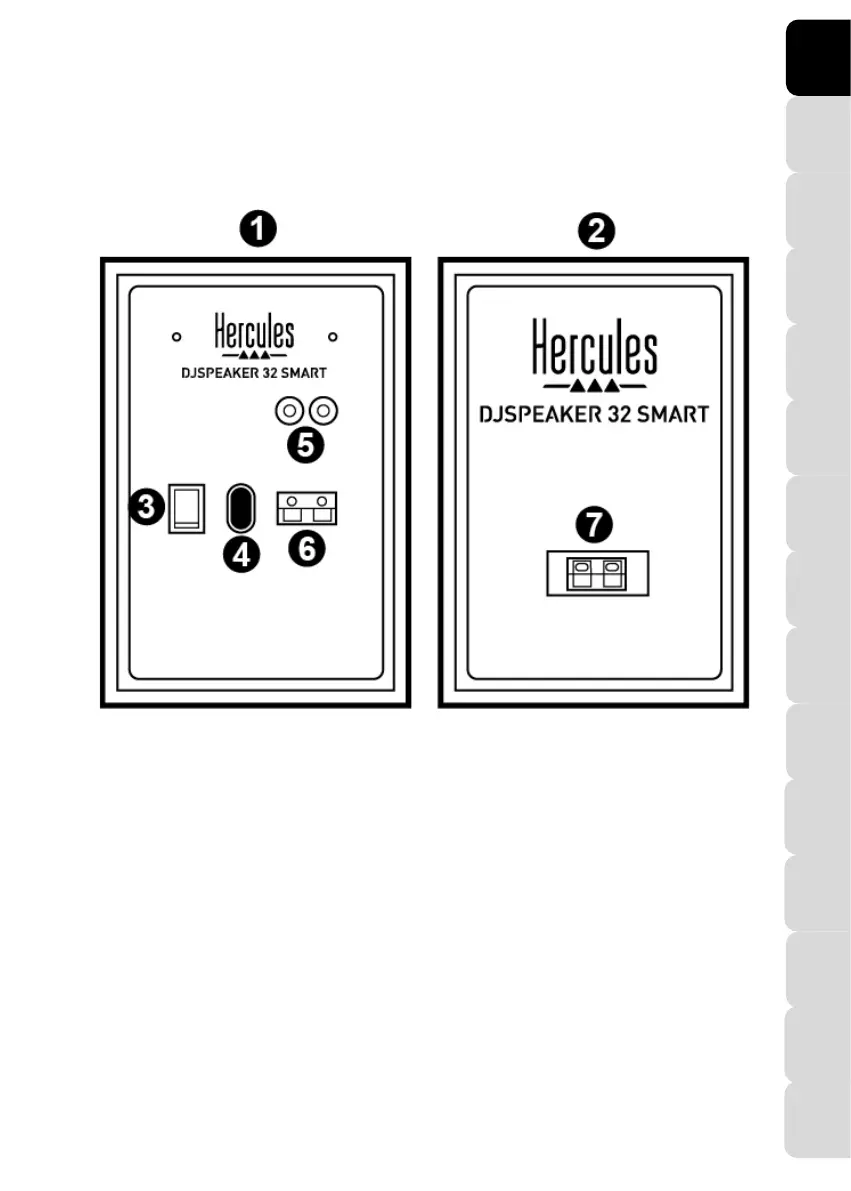

- General connection diagram:
1: Right speaker
2: Left speaker
3: On/Off switch
4: Power connector
5: RCA connectors for main audio input
6: Terminal block output connector on right satellite speaker
7: Terminal block input connector on left satellite speaker
