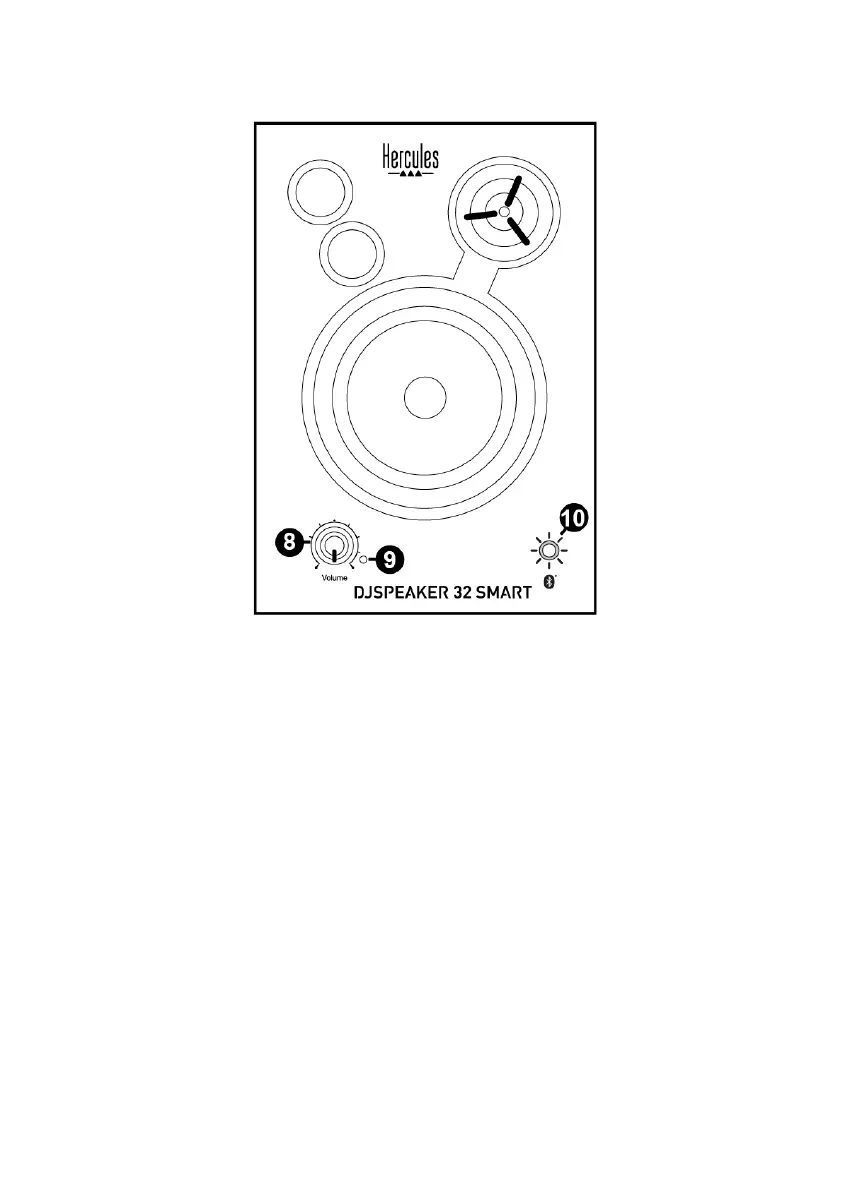

- Right speaker with controls:
8: Master volume control knob
9: Power LED
10: Bluetooth® pairing button and LED
2.2.1. Connection to a PC/Mac®
- Connect your speaker kit’s main audio input (RCA connectors on the back of the right satellite speaker) (5) to
the green FRONT SPEAKERS or FRONT OUT connector on your sound card or on the sound card integrated
into your computer’s motherboard, using the included male jack / 2 male RCA cable.
2.2.2. Connection to a television set equipped with a headphone jack
- Connect your speaker kit’s main audio input (RCA connectors on the back of the right satellite speaker) (5) to
the headphone jack on your television set.
2.2.3. Connection to a DVD player/television set equipped with Left and Right
audio outputs
Requires a female jack / 2 male RCA cable (not included – please see diagram A, below).
1. Connect your male jack / 2 male RCA cable to the female jack / 2 male RCA cable.
2. Connect the white RCA connector on the female jack / 2 male RCA cable to the corresponding audio output on
your DVD player/television set.
3. Connect the red RCA connector on the female jack / 2 male RCA cable to the corresponding audio output on
your DVD player/television set.
