Page 8 For technical questions, please call 1-888-866-5797. Item 59615
3. Align the Edge Guide along the temporary
guide secured to the workpiece to cut
parallel with the temporary guide.

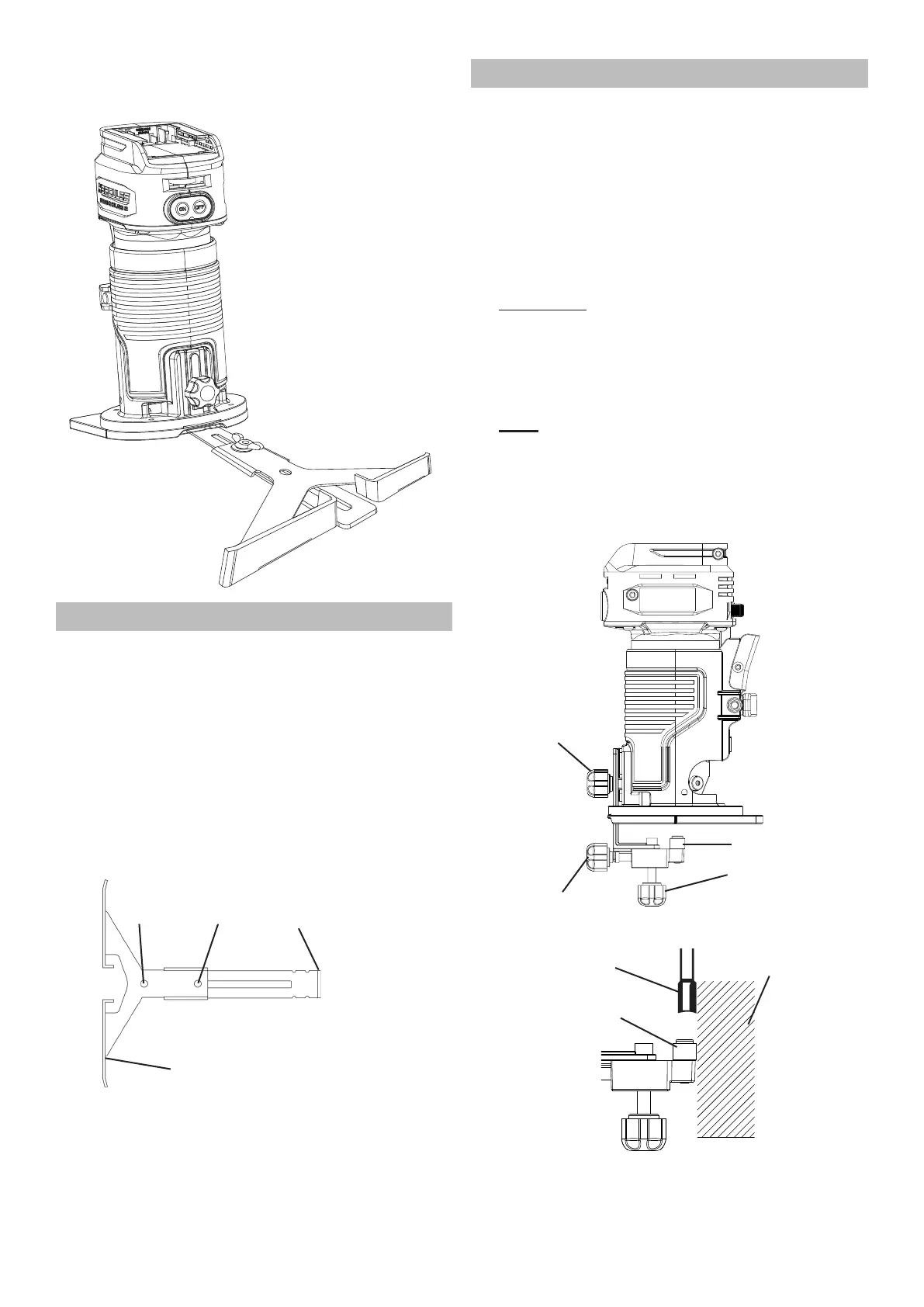

Circle Cutting Installation
1. Install the Edge Guide as shown.
2. Set the distance from the center hole in the Edge
Guide to the far edge of the router bit equal to the
radius of the circle. Lock the Edge Guide in place
with the Guide Locking Knob and Wing Nut.
3. Align the center gap in the Edge Guide
with the center point of the circle.
4. Drive a nail through the center hole to
secure the Edge Guide in place.
5. Use the nail in the center to rotate the
Router and make a circle cut.
Raised Edge of
Parallel Guide
(Attached to Router)
Center
Hole
Attach
Wing Nut
Raised Edge of Parallel Guide
(Outward and Up)
Roller Guide Installation
The Roller Guide trims in relation to both the workpiece’s
top surface and its edge surface. The Router must
be adjusted to cut accurately in two dimensions.
1. Assemble the Roller Guide as shown.
Attach to the Router Base.
2. Adjust the Router Base so the cutting
depth will be flush with the surface that
you will be trimming to match.
3. Loosen the Guide Locking Knob and adjust
the Roller Guide so that its Roller Wheel is
below the bit by approximately 3/4″ to 1″. Tighten
it in position using the Guide Locking Knob.
4. Center the cutting bit over the edge to be
trimmed by loosening the Roller Guide Locking
Knob and sliding the Roller Wheel into position.
Tighten the Roller Guide Locking Knob.
Note: To make fine adjustments, partially loosen
Roller Guide Locking Knob and use the Roller
Guide Fine Adjustment. When the adjustments are
finalized, tighten the Roller Guide Locking Knob.
5. Make a test cut on a piece of scrap material
to ensure that the adjustment is correct.
Guide
Locking Knob
Roller Guide
Fine Adjustment
Roller Wheel
Roller Guide
Locking Knob
Router Bit
Roller Wheel
Workpiece
