3

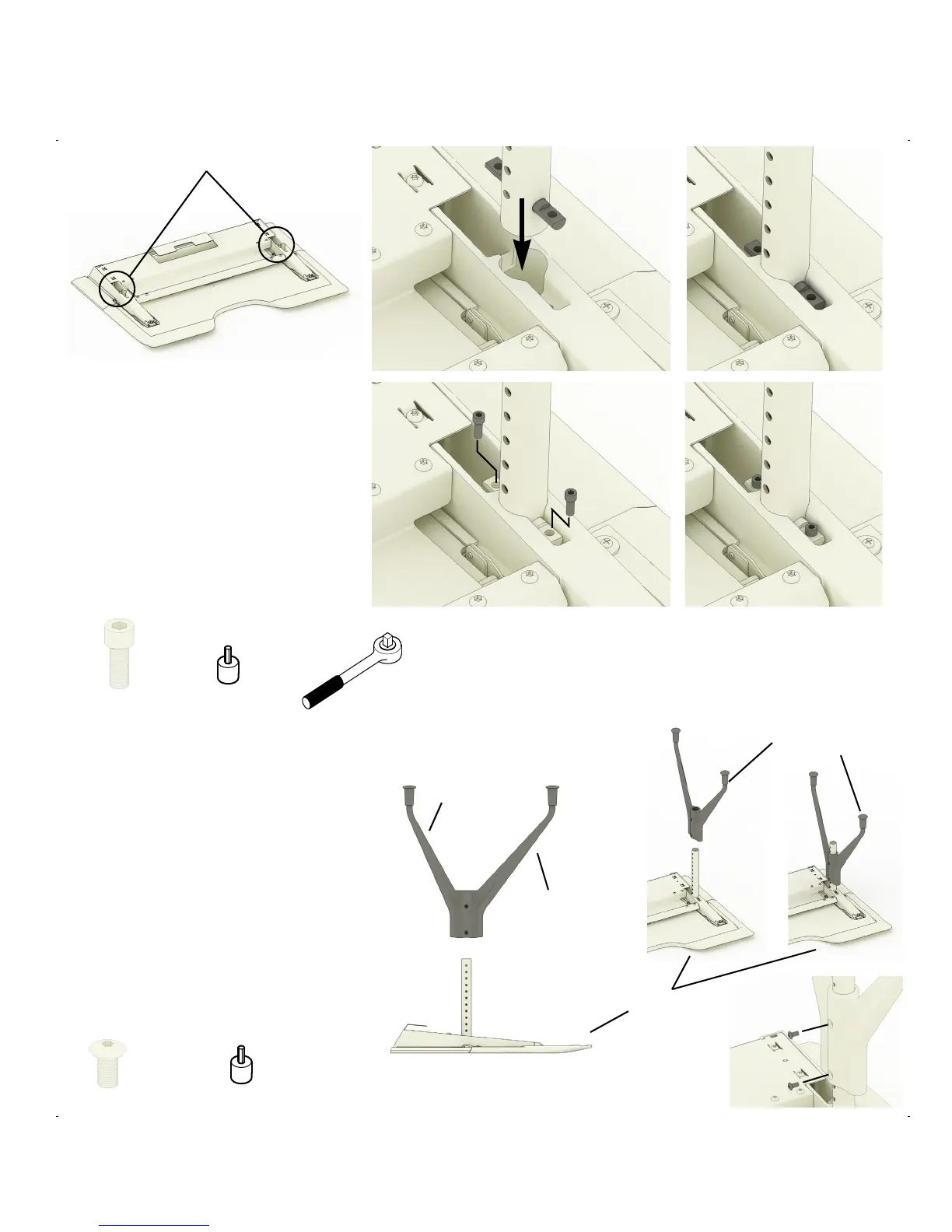

shaft attachment positions
Attach the tubes to the work sur-
face as illustrated in the figures on
the right.
Make sure that the holes of the
tubes are facing towards the inte-
rior of the work surface.
Secure the tubes to the work sur-
face using the cap screws. Tighten
until firmly in place.
3a 3b
3c 3d
3/16 Hex Socket
Cap Screw
4
Front
Long Leg
Short Leg
Interior Section View
Attach the supports to the tubes as
illustrated in the figures on the right.
Make sure the long leg of each sup-
port is facing the front of the work
surface.
Secure the supports to the tubes
using the button head cap screws.
Tighten until firmly in place.
3/16 Hex Socket
Long Leg
Cap Screw
4a
4b
4c
