HermanMiller Lino - Step 4: Remove Sacral; Step 5: Push No-Lumbar Cap Out; Step 6: Unscrew 3 Bolts; Step 7: Remove J-bar

2HermanMiller for Lino
TM
Chair Dissembly Instructions1BJN55 rev A

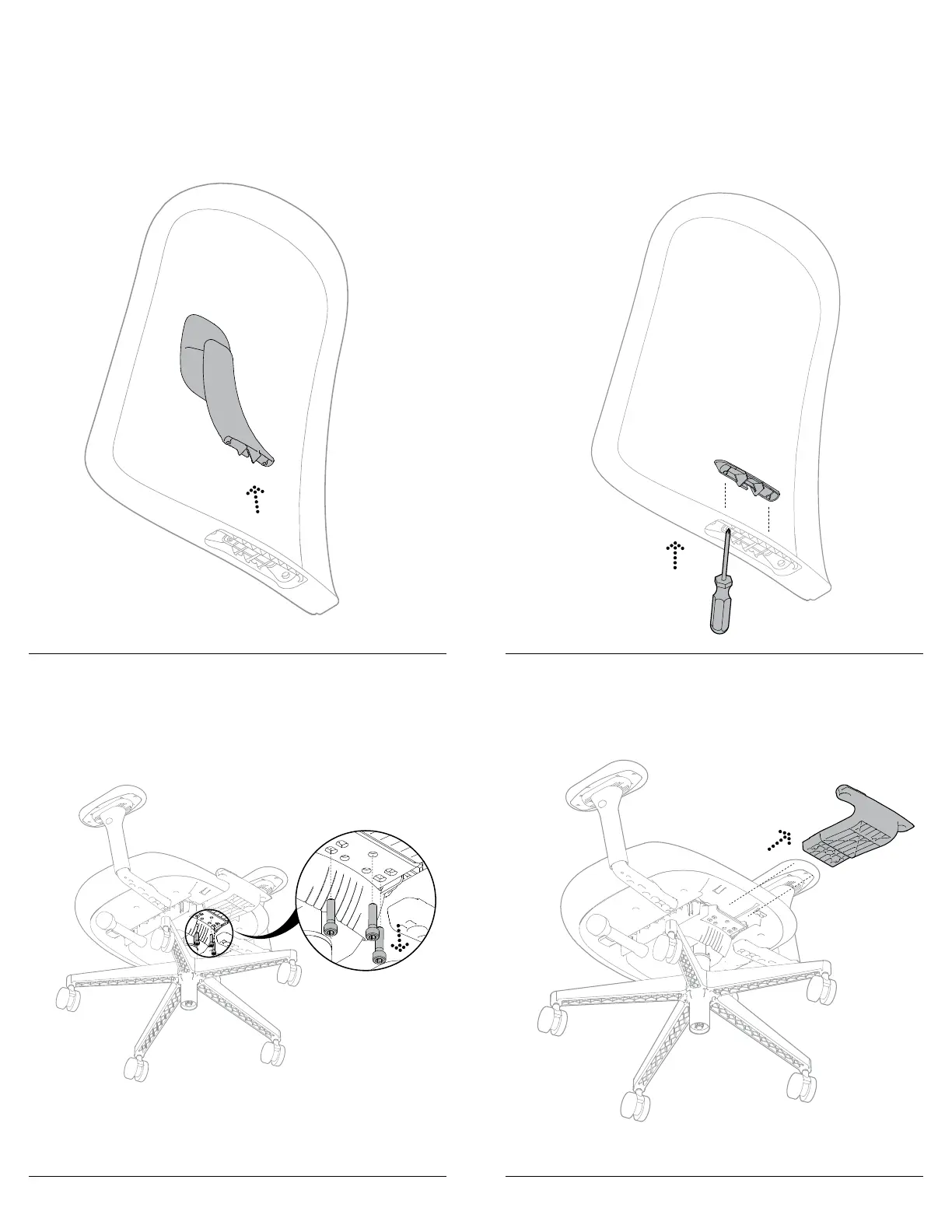

Step 4
. Remove the sacral from the back frame assembly.
Step 5
. Insert a screw driver through the screw hole and push the no-lumbar cap
out from the bottom of the back.
Step 6
. Unscrew the  bolts using T- torx bit.
Step 7
. Remove the J-bar from tilt assembly.
