Hermle Z 366 - LCD-Display

PRODUCT DESCRIPTION
© Hermle Labortechnik GmbH Z366_V1.18_eng 3
1.5.1 LCD-Display

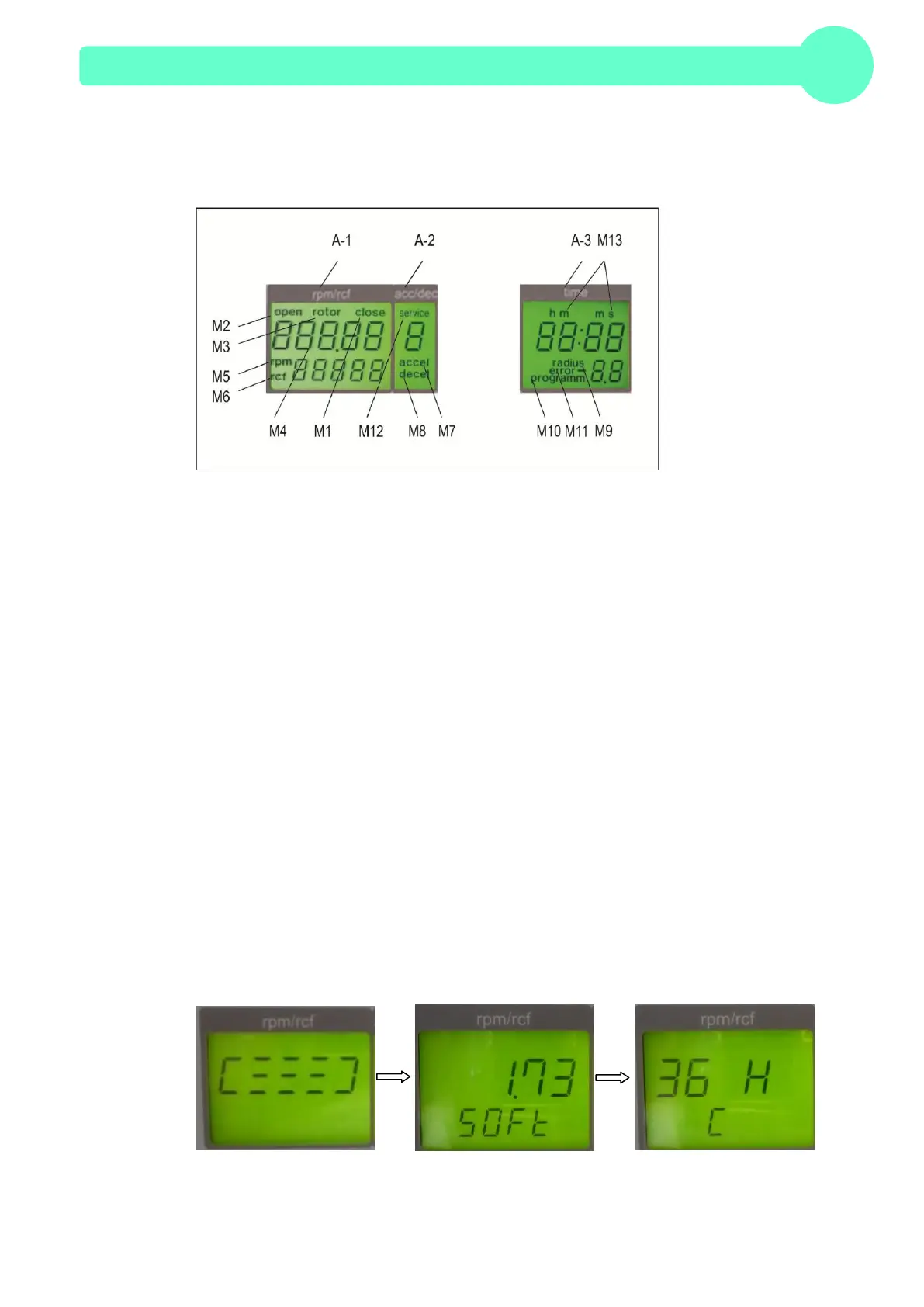

The following picture shows the individual elements of the LCD-display.
Figure 1
Display Fields:
A-1 Display Field – "rpm/rcf"
A-2 Display Field – "acc/dec"
A-3 Display Field – "time"
Messages/Logos of the Display Fields:
M1 "close" M8 "decel"
M2 "open" M9 "radius"
M3 "rotor" M10 "program"
M4 Rotor-No. M11 "error"
M5 "rpm" M12 "service"
M6 "rcf" M13 h m s
M7 "accel"
Indication:
After switching on the centrifuge, the display, "rpm/rcf"(A-1) shows the loading status, the current
software version and finally the model type (e.g. Z 36 HK).
