HERO GLAMOUR - Oil Filter Screen & Centrifugal Filter Cleaning

31

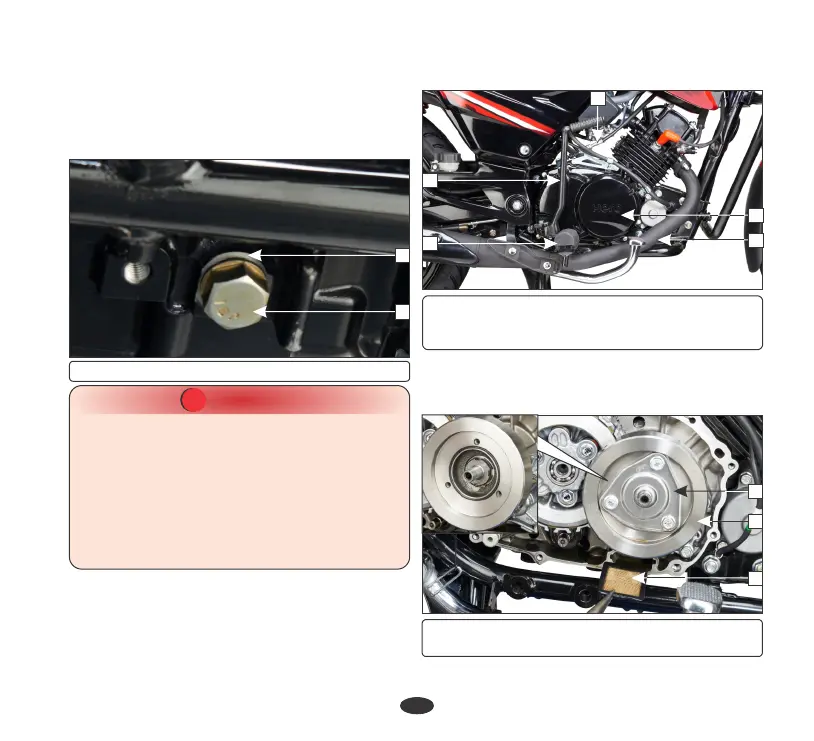

(1) Drain plug (2) Sealing washer
2
1
CAUTION
!!
•
Running the engine with insufficient oil can
cause serious engine damage.
•
Running the engine with excessive oil can
cause spark plug fouling & loss in
performance.
•
Engine oil is a major factor affecting the
performance and service life of the engine.
Non-detergent, vegetable or castor based
racing oils are not recommended.
•
Recheck the oil level.
•
Make sure that oil level is at the “UPPER”
level mark of the oil level dipstick with the
vehicle in an upright position and that there
are no oil leaks.
OIL FILTER SCREEN & CENTRIFUGAL
FILTER CLEANING
•
Drain the engine oil thoroughly.
•
Remove the kick starter pedal (1), muffler
(2), disconnect the clutch cable (3), and
rider footrest (4). Remove the right
crankcase cover (5).
•
Remove gasket and dowel pin (2 nos.).
1
3
4
(1) Kick starter pedal (2) Muffler
(3) Clutch cable (4) Rider foot rest
(5) Right crankcase cover
•
Remove the oil filter screen (6) and wash it
in clean non flammable or high flash point
solvent (kerosene).
(6) Oil filter screen (7) Centrifugal filter cover
(8) Centrifugal filter
7
8
6
2
5
