Check the rear shock absorber by pushing
hard downwards on rear grip while the
vehicle is not parked on stand. The
suspension action should be smooth and
their should be no oil leakage.

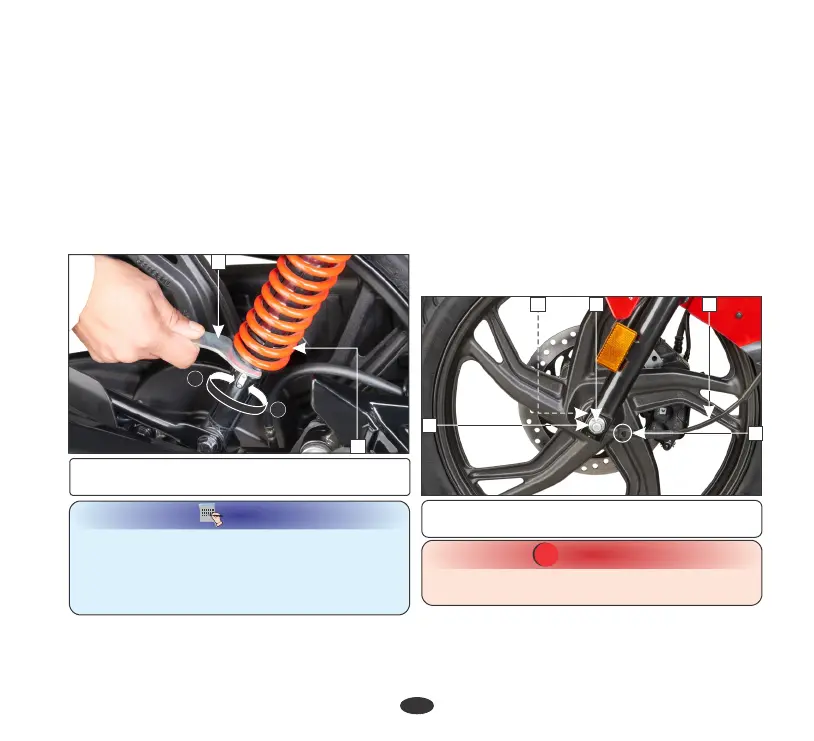

Rear shock absorber adjustment
Rear shock absorber adjustment can be made
according to the load/road conditions.
•
In direction A: Stiffer
•
In direction B: Softer
B
A
1
(1) Pin spanner (2) Rear shock absorber
(A) Stiffer (B) Softer
NOTE
Always adjust both the rear shock absorbers to
the same position. To adjust the rear shock
absorber (2), use the rear shock absorber
adjustment tool (Pin spanner) (1) available in
the tool kit.
2
•
Remove the side collar (5) from the wheel.
Removal
•
Remove the front axle nut (3).
•
Remove the speedometer cable (1) by
pressing the tab (2) & pulling cable out
from the speedometer gearbox.
•
Remove the axle (4) and the wheel.
(a) Front wheel (Disc type)
•
Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
WHEEL
CAUTION
!!
Do not operate front brake lever when the
wheel is removed.
(1) Speedometer cable (2) Tab (3) Axle nut
(4) Axle (5) Side collar
3
