46
•

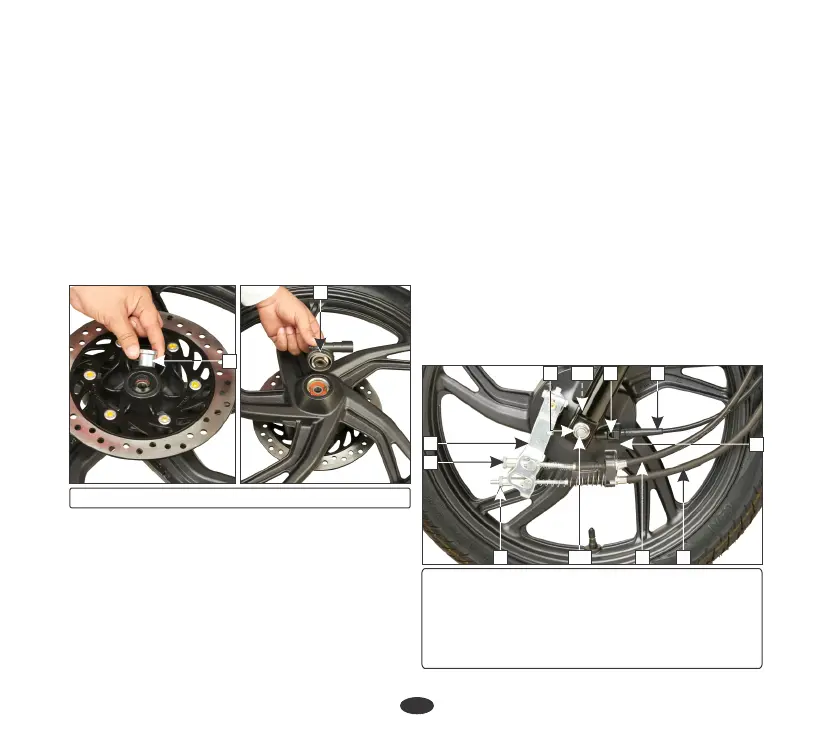

Install the side collar (1) to the right side of
the wheel hub and then install the
speedometer gear box (2) on the left side of
the wheel hub.
•
Position the front wheel between the fork
legs by aligning the slot on the speedometer
gear box with the lug on the fork leg and the
disc between the brake pads to avoid
damage to the pads. Insert the axle from the
right side through the fork legs and wheel
hub.
Installation
•
Tighten the front axle nut to the specified
torque.
TORQUE : 5.2 kgf-m
•
After installing the wheel apply the brake
several times and then check if the wheel
rotates freely. Recheck the wheel if the
brake drags or if the wheel does not rotate
freely.
(1) Side collar (2) Speedometer gear box
1
2
4
Removal
•
Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
•
Remove the speedometer cable (1) by
pressing the tab (2) & pulling cable out
from the speedometer gearbox.
•
Remove the axle nut (9).
•
Remove the wheel.
•
Remove the axle (10) and side collar (11).
(b) Front wheel (Drum type)
•
Disconnect the brake cable (3) and
integrated brake cable (4) from integrated
brake arm (5) and brake panel (6) by
removing the front brake adjusting nut (7)
and integrated brake adjusting nut (8).
3
5
(1) Speedometer cable (2) Tab
(3) Front brake cable (4) Integrated brake cable
(5) Brake arm (6) Brake panel
(7) Front brake adjusting nut
(8) Integrated brake adjusting nut
(9) Axle nut (10) Axle (11) Side collar
2
7
8
10
6
9 11 1
