HERO GLAMOUR - Front Brake Inspection (Disc Type)

40

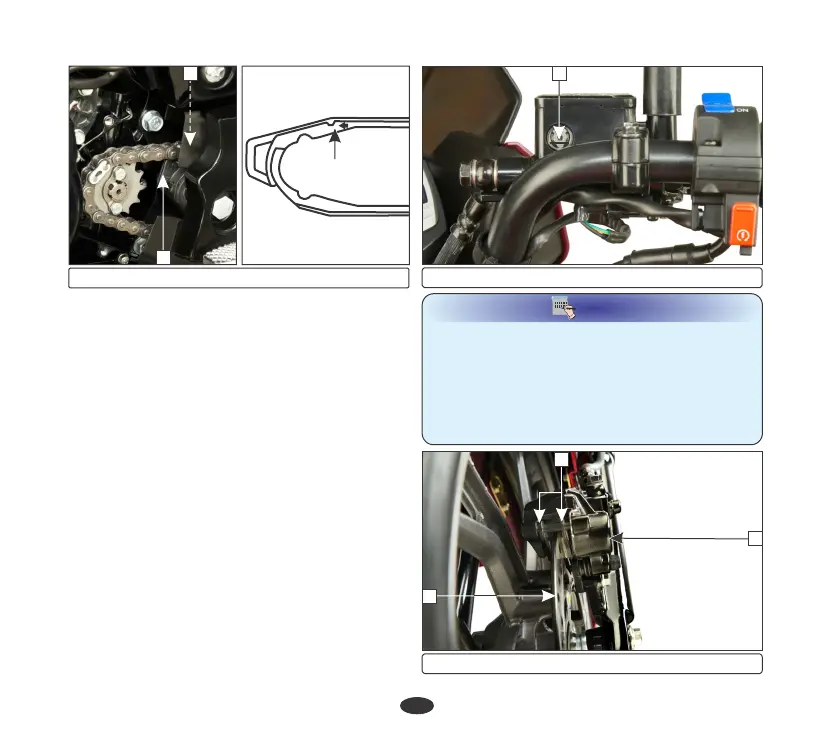

(1) Chain slider (2) Wear limit
CUTOUT
2
1
(Disc type)
Brakes (Integrated braking system)
(a) Front brake inspection (Disc type)
When one applies the Integrated/Rear brake
pedal, front & rear brakes activate jointly.
Brake fluid recommended: DoT 3 or DoT 4
Fluid level-Ensure that the brake fluid level
does not fall below “MIN” mark (1) on the
master cylinder, when checked with the
master cylinder parallel to the ground. The
level decreases gradually due to piston
BRAKES
Brakes are items of personal safety and should
always be maintained with proper
adjustments.
Master Cylinder/Reservoir.
Location: Right handle bar.
movement to compensate pad wear. If the
level decreases abruptly, check for leakage in
the brake system and contact your Authorised
Hero MotoCorp workshop.
(1) "MIN" mark
1
NOTE
•
Always contact Hero your Authorised
MotoCorp workshop for refilling of master
cylinder when necessary.Do not mix DoT 3
and DoT 4 brake fluid.
•
Clean the dirt and mud accumulation
between the brake pads (2), caliper (3) and
the disc (4) by using a water jet.
(2) Brake pads (3) Caliper (4) Disc
4
2
3
