53
•
Check all bolts and other fasteners are
secured.

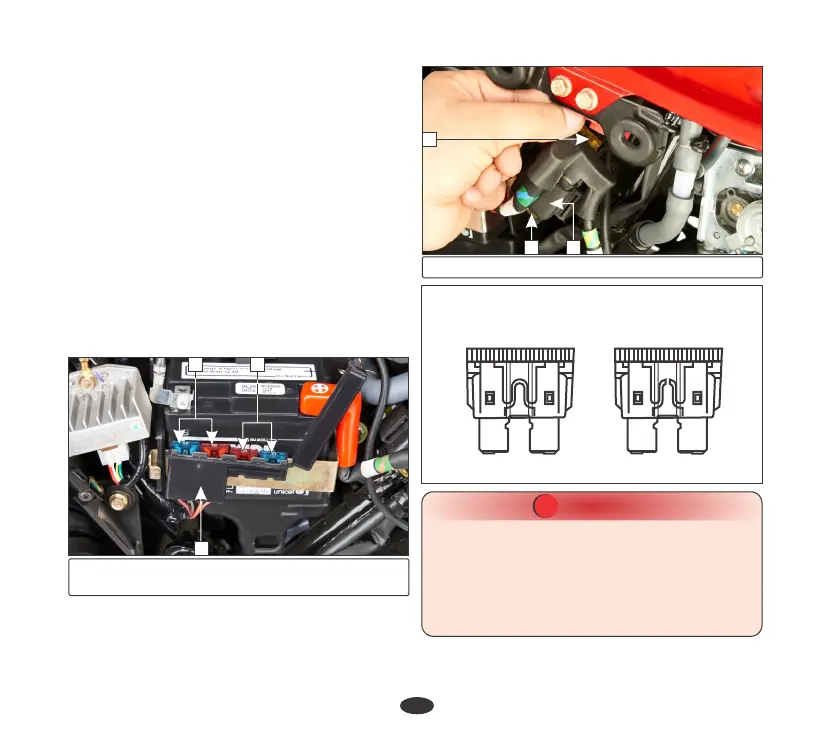

Main fuse box (A): Location: Mounted on
the battery clamp.
•
Pullout the battery (5) from the battery box.
•
Reinstall in the reverse order of removal. Be
sure to connect the positive (+)ve terminal
first, then the negative (-)ve terminal.
FUSE REPLACEMENT
Fuse Type: Blade fuse
•
Disconnect the negative (-) terminal (3)
lead from the battery first, then disconnect
the positive (+) terminal lead (4).
Battery installation
Refer to the safety precautions on (page 25).
(1) In circuit fuse: 15A & 10A
(2) Spare fuse: 15A & 10A
1
2
A
Location: Below starter magnetic switch.
Location: Inside right side cover
Fuse Type: Blade fuse
Starter magnetic switch (B)
(1) In circuit fuse: 20A (2) Spare fuse: 20A
1
2 B
CAUTION
!!
•
Do not attempt to start or ride the vehicle
without a charged battery, it can cause
fusing of the bulbs and permanent damage
to certain electrical components.
•
Turn the ignition switch "OFF" before
checking or replacing the fuse to prevent
accidental short-circuiting.
