54
WARNING
!!
•
Battery gives off explosive gases. Keep
sparks, flames & cigarettes away.
•
Never use a fuse with a different rating from
that specified. It may lead to serious damage
to the electrical system or a fire due to short
circuit.

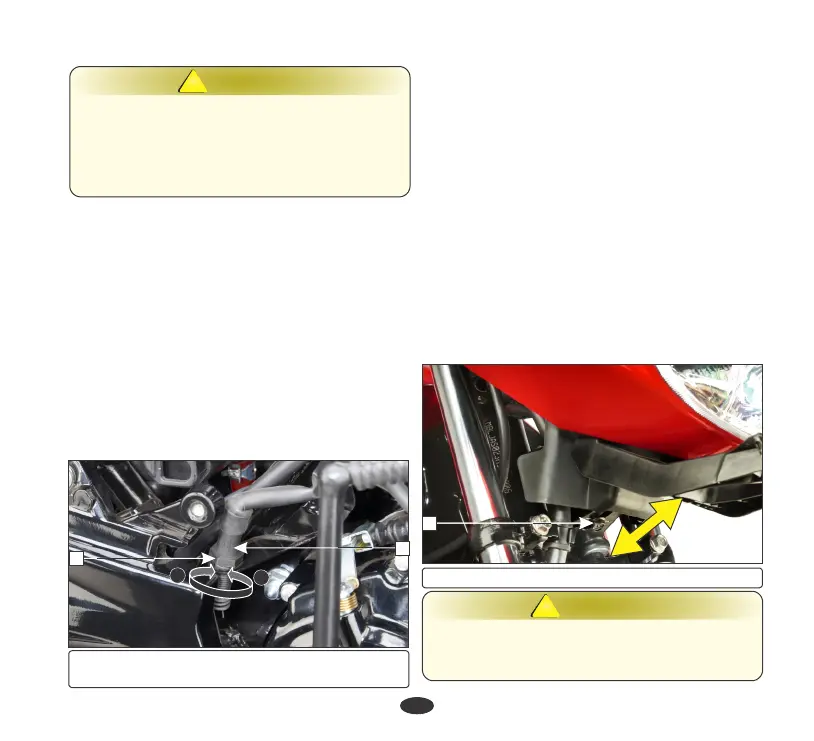

The stop lamp switch (1) must be adjusted so
that stop lamp will glow when rear brake is
applied. Rear brake free play (page 43)
should be adjusted before performing stop
lamp switch adjustment. The procedure for
adjusting stop lamp switch is as follows :
STOP LAMP SWITCH
•
Turn the ignition switch to the “ON”
position.
•
Remove the right side cover (page 52).
•
Turn the adjusting nut (2) to position stop
lamp switch at a point where the stop lamp
will glow just before the brake pedal is
depressed to the limit of its free play.
(1) Stop lamp switch (2) Adjusting nut
(A) Advance (B) Retard
2
1
A
B
•
Tighten the bolt after adjustment.
Headlamp is factory preset. However in case
of adjustment required, please follow the steps
as given below:
•
Park the vehicle on level ground.
•
Adjust the headlamp beam vertically by
loosening the bolt (1) and move the
headlamp unit forward and backward for
correct focus adjustment.
HEADLAMP FOCUS ADJUSTMENT
•
Headlamp adjustment is done by the
headlamp adjusting bolt (1) located below
headlamp.
•
Turn the adjusting nut in direction (A) to
advance switch timing or in direction (B) to
retard switch timing.
1
(1) Adjusting bolt
WARNING
!!
An improperly adjust headlamp may blind
oncoming rider/driver or it may fail to light
the road for a safe distance.
