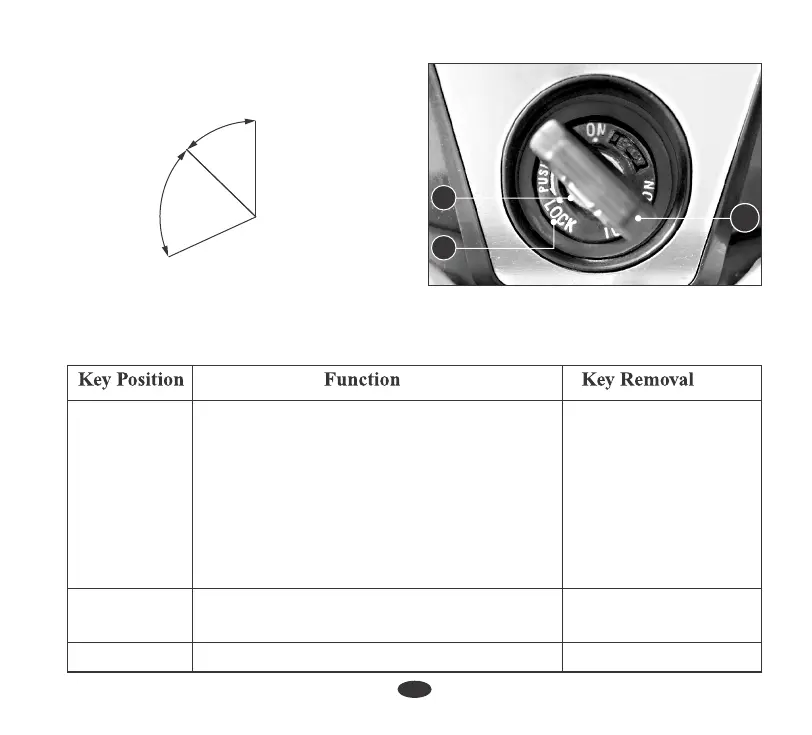

HERO HUNK - Ignition Switch and Steering Lock; Ignition Switch Operation; Steering Lock Mechanism

10
The LCD panel illuminates & initial display of
multi function digital segments are displayed.
The tachometer needle and the fuel gauge needle
will swing to the maximum scale once and back
to its normal position. The engine can be started.
Turn signal lamp, Horn, Tail/ Stop lamp, Fuel
gauge, Pass lamp, Position lamp, Licence plate
lamp & Neutral indicator will be functional.
2. Ignition key
3. Steering lock position
1. Ignition switch
Engine cannot be started and no electrical
system will be functional.
Steering can be locked
Key can be removed
Key cannot be removed.
Key can be removed
“OFF”
“ON”
“LOCK”
“ON” Position
“LOCK” Position
“OFF” Position/
Lock Open
Ignition Switch
2
1
3
