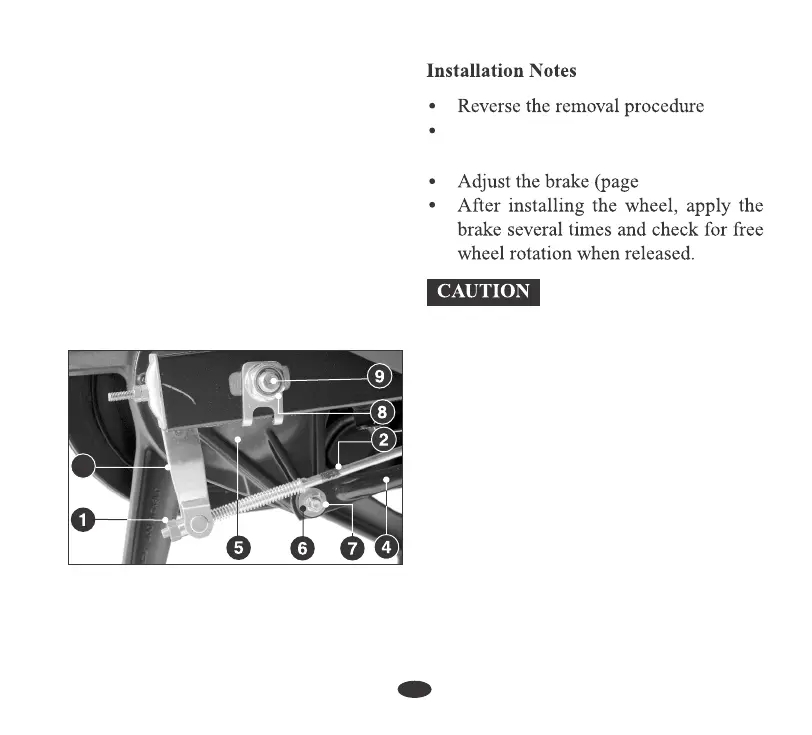

(1) Rear brake adjusting nut, (2) Rear
brake rod, (3) Brake arm, (4) Brake
stopper arm, (5) Brake panel, (6) Split pin
(7) Lock nut, (8) Axle nut, (9) Axle
3
Axle nut torque : 6.8 kgf-m
45-46).
Brake stopper arm nut torque : 2.2 kgf-m
Always replace used split pins with new
ones.
REAR WHEEL REMOVAL
Drum type
1. Raise the rear wheel off the ground.
3. Remove the axle nut (8) and pull out
the axle (9). Remove the wheel.
2. Remove the rear brake adjusting nut (1)
and disconnect the brake rod (2) from the
brake arm (3) by pushing down the brake
pedal. Disconnect the brake stopper arm
(4) from the brake panel (5) by removing
split pin (6) and lock nut (7).
Disc type
Refer safety precautions on (page 29).
1. Support the motorcycle securely on the
main stand and raise the rear wheel off
the ground.
2. Remove the rear axle nut (1) and washer
(2).
3. Remove the axle (3) and the right side
collar (4).
4. Move the caliper assembly (5) upwards.
REAR WHEEL REMOVAL
5. Slide the wheel out from left side.
To Next Page
