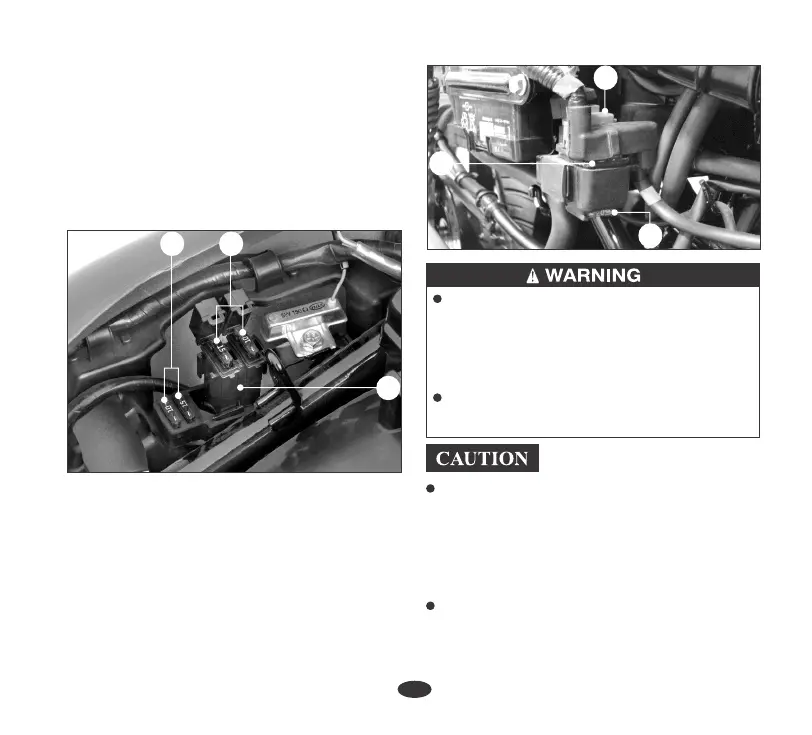

Fuse Box (A) Location : Below the seat
Fuse Type : Blade fuse
In circuit fuse : (1) 15A, 10A
Spare fuse : (2) 15A, 10A
Refer to the safety precautions on (page 29).
FUSE REPLACEMENT
Never use a fuse with a different rating
from that specified. It may lead to
serious damage to the electrical system
or a fire due to short circuit.
Battery gives off explosive gases. Keep
sparks, flames & cigarettes away.
Start Mag. Switch (B)
Location : Inside right side cover
Fuse Type : Blade fuse
In circuit fuse : (1) 20A
Spare fuse : (2) 20A
Location : Below start mag switch.
2
B
1
2 1
A
Do not attempt to start or ride the
motorcycle without a charged battery, it
can cause fusing of the bulbs and
permanent damage of certain electrical
components.
Turn the ignition switch "OFF" before
checking or replacing the fuse to
prevent accidental short-circuiting.
