HEADLAMP ADJUSTMENT
Headlamp is preset. However in case of
adjustment required, please follow the
steps as given below:
3. Adjust the headlamp beam by
loosening the bolt (1) and moving the
headlamp unit forward and backward
for correct focus adjustment.
2. Park the motorcycle on level ground.
1. Headlamp adjustment is done by the
loosening the bolt (1) located below the
headlamp.
4. Tighten the bolt after adjustment.
An improperly adjusted headlamp may
blind oncoming rider/driver or it may
fail to light the road for a safe distance.
2
1
1
STOP LAMP SWITCH
Stop lamp switch

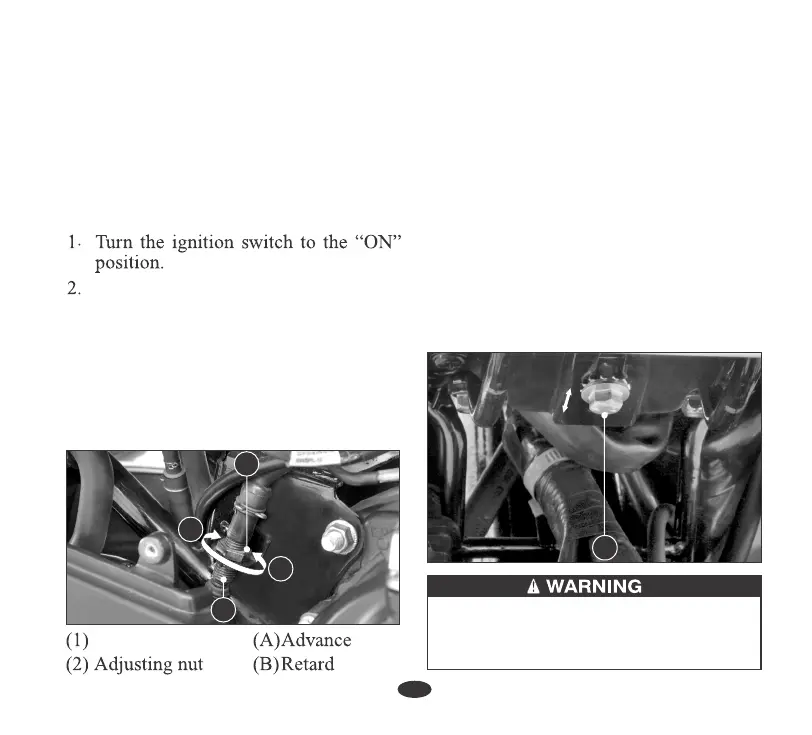

The stop lamp switch (1) must be adjusted
so that stop lamp glows when rear brake is
applied. Rear brake free play (page 45)
should be adjusted before performing stop
lamp switch adjustment. The procedure for
adjusting stop lamp switch is as follows :
Turn the adjusting nut (2) to position
stop lamp switch at a point where the
stop lamp glows just before the brake
pedal is depressed to the limit of its
free play. Turn the adjusting nut in
direction (A) to advance switch timing
or in direction (B) to retard switch
timing.
