55
4. Align the rear caliper holder (3) with the
swingarm (4).
5. Insert the axle (5) from the left side
through the swingarm, wheel hub,
collar and rear caliper holder .
1. Install the side collar (1) to the right side
of the wheel hub.
3. Insert the disc (2) between the pads in
the caliper assembly. When installing
the wheel, carefully fit the brake disc
between the brake pads to avoid damage
to the pads.

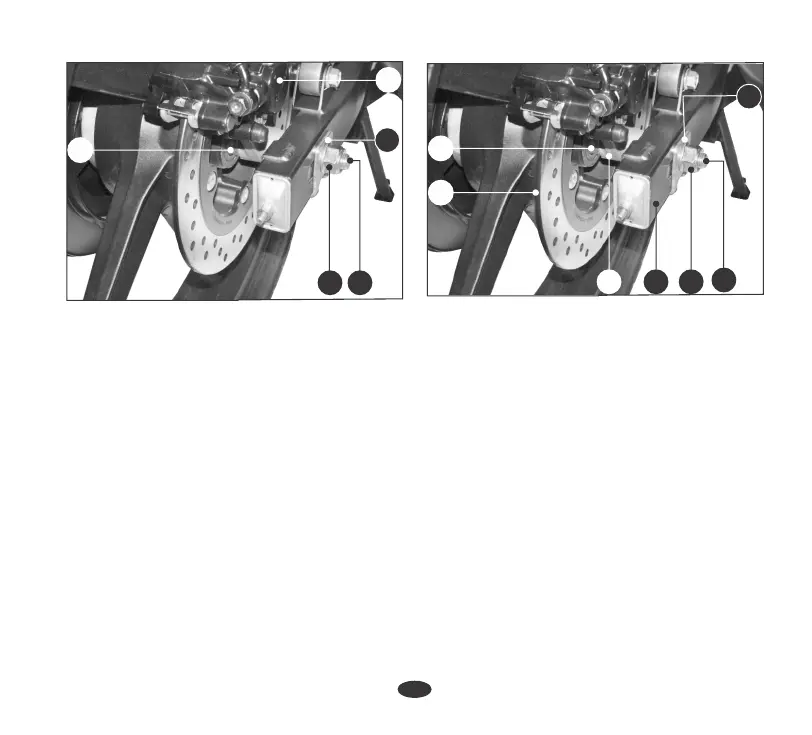

REAR WHEEL INSTALLATION
2. Tilt the motorcycle and position the rear
wheel between the swingarm.
6. Install the washer (6) and tighten the
rear axle nut (7) to the specified torque.
TORQUE : 6.8 kgf-m
5
1
2
3
4 7
6
1
5
4
3
2
