HERO HUNK - Rear Brake System (Disc Type); Rear Brake Fluid Reservoir; Rear Caliper and Pad Wear

46
3
A
B
If proper adjustment cannot be obtained by
this method, visit your Authorised Hero
MotoCorp workshop.
4
2
1

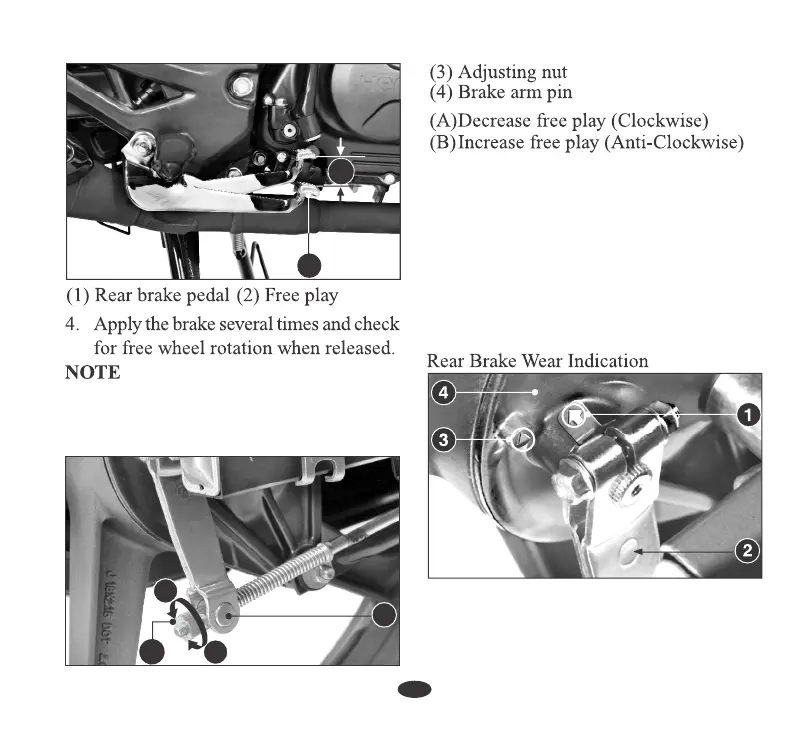

When the brake is applied, an arrow (1),
fixed to the brake arm (2), moves towards
a reference mark (3) on the brake panel (4).
If the arrow aligns with the reference mark
on full application of the brake, the brake
shoes must be replaced.
BRAKE WEAR INDICATORS
(1) Arrow
(2) Brake arm
(4) Brake penal
(3) Reference mark
