headlamp

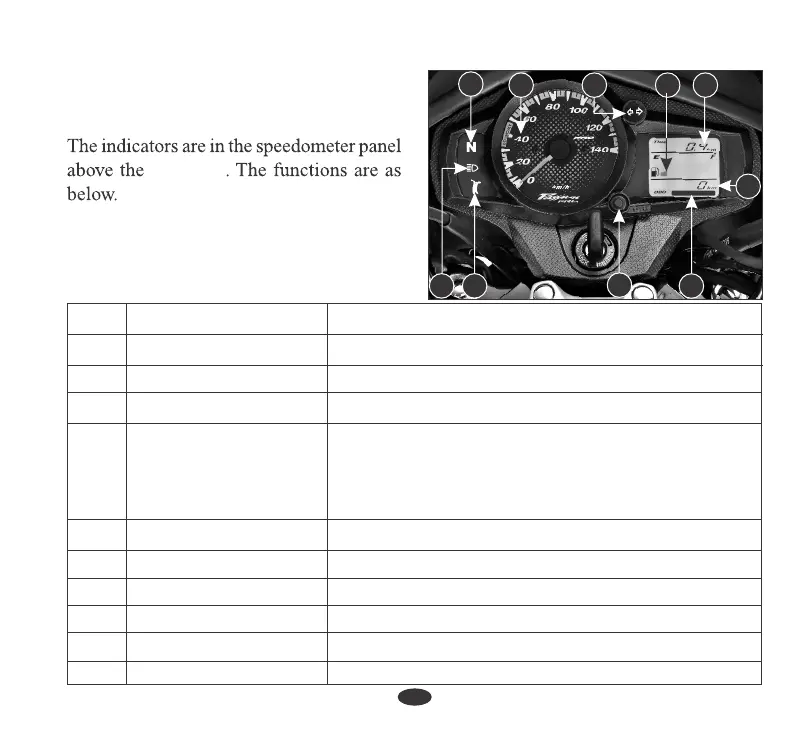

PARTS FUNCTION
INSTRUMENTS AND INDICATORS
(10) High beam indicator Light glows when Headlamp is in "Hi" Beam
(4) Fuel gauge Indicates approxi mate fuel qua ntity in the
form of digital segments. The fuel gauge segments will
swing to the maximum scale on the fuel gauge LCD
panel once when the ignition switch it turned "ON".
(7) Service reminder indicator Displays when the next service is due (page 12)
(6) Odometer Shows accumulated distance traveled
(3) Turn signal indicator Flashes when turn signal switch is operated
(8) Reset button To reset the tripmeter to zero before starting a new trip
(5) Tripmeter Shows the distance traveled during a trip
(1) Neutral indicator Light glows when vehicle is in neutral
(2) Speedometer Indicates driving speed
Sl. No. Description Function
(9) Side stand indicator Light glows when the vehicle is parked on the side stand
10
10
4
7
6
To Next Page
