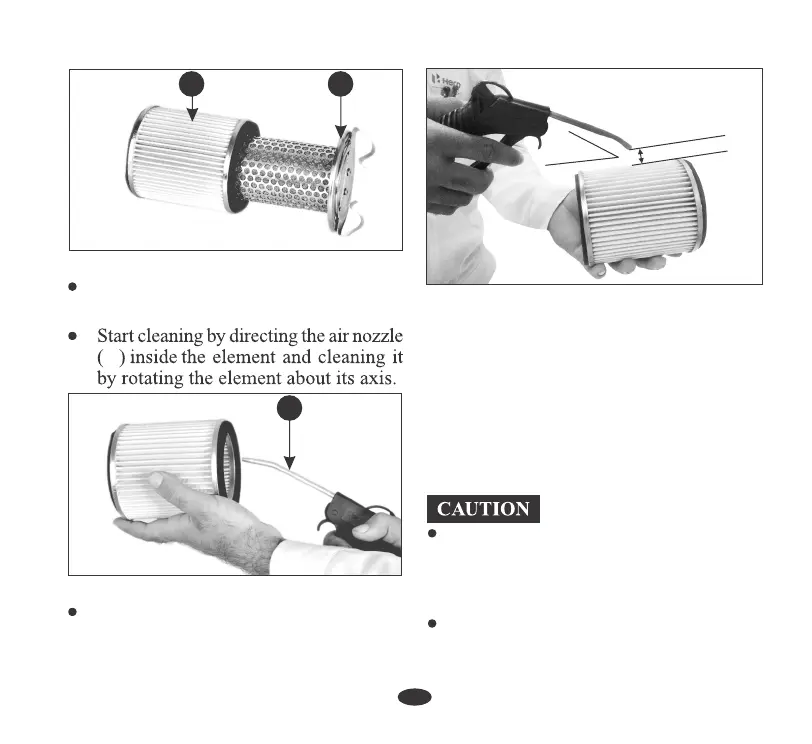

The Air Cleaner Element should be cleaned
by blowing moisture free pressurized air.
(8) Air cleaner element (9) Element Holder
(10) Air Nozzle
Now blow the dust from the surface of the
paper element about 50 mm away from it,
O
with the air nozzle (10) at an angle of 45
and moving it along the paper pleats.
Install the air cleaner element on holder,
insert the air cleaner assembly into the
inlet air duct & press gently to fix the
mounting clamp in housing. Ensure
cover lug should take proper seat on the
other side of the mounting clamp.
5. Replace it earlier if it becomes very dirty,
damaged on surface or on the sealing area.
Never blow air initially from outside to
inside as the fine dust particles may go
deep inside the element.
Never wash the air cleaner element. Only
blow air for cleaning the dust, as
explained. Replace air cleaner element
every 12000 kms.
O
45
50 mm
