HERO Passion Pro - THROTTLE OPERATION; Throttle Cable and Free Play Adjustment

HERO Passion Pro
74 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
35
A
B
3
4
1

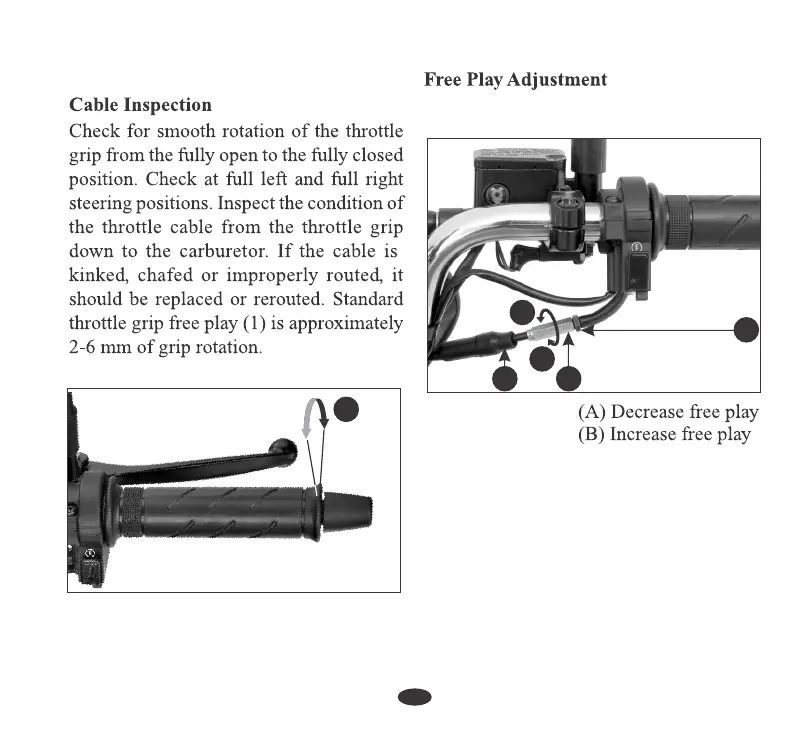

Slide the grommet (2), loosen the lock nut
(3) and turn the adjuster (4).
2
(3) Lock nut
(2) Grommet
(4) Adjuster
(1) Free play 2-6 mm
THROTTLE OPERATION
