HERO Passion Pro - FRONT BRAKE (DISC TYPE) ADJUSTMENT; Front Brake (Disc Type) Adjustment Procedure

43
(1) "MIN" mark
If proper adjustment cannot be obtained by
this method, visit your Authorised Hero
MotoCorp workshop.
Brake fluid recommended: DoT 3 or DoT 4
Fluid level - Ensure that the brake fluid
level does not fall below “MIN” mark (1)
on the master cylinder, when checked with
the master cylinder parallel to the ground.
The level decreases gradually due to piston
movement to compensate pad wear. If the
level decreases abruptly, check for leakage
in the brake system and contact your
Authorised Hero MotoCorp workshop.

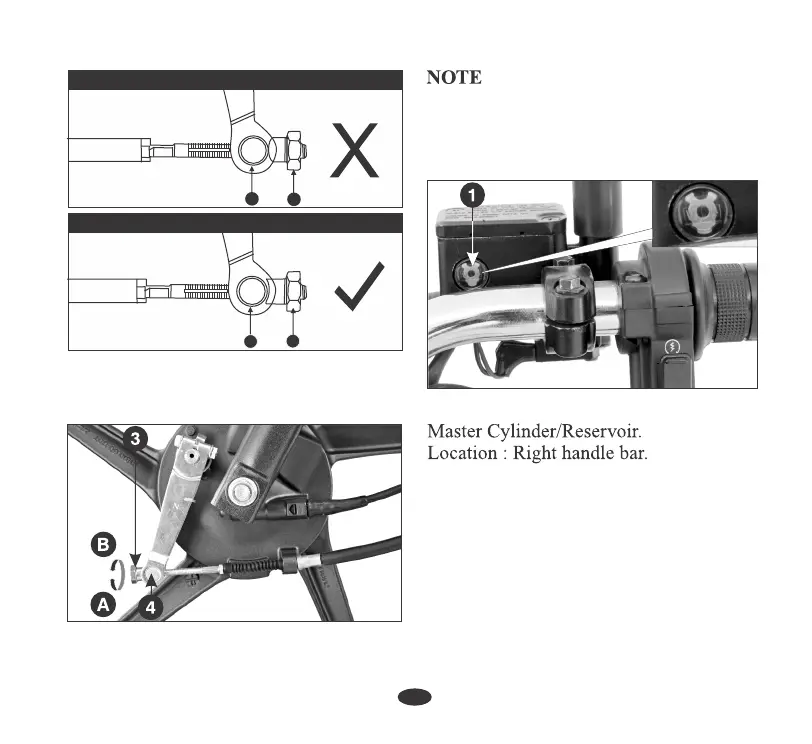

3
4
CUT-OUT NOT SEATED
(3) Adjusting nut (4) Brake joint pin
3
4
CUT-OUT SEATED
Cast wheel version
(A) Decrease freeplay (Clockwise)
(3) Adjusting nut (4) Brake joint pin
(B) Increase freeplay (Anti-Clockwise)
FRONT BRAKE (Disc Type)
