52
.
B
A
(1) Pin spanner
Drum Type (Spoke wheel version)
1
NOTE
Always adjust both the rear shock
absorbers to the same position. Use the rear
shock absorber adjustment tool (Pin
Spanner) (1) available in the tool kit.
• In direction A Stiffer
• In direction B Softer
Rear Shock Absorber Adjustment
Rear shock absorber adjustment can be
made according to the load/road conditions.

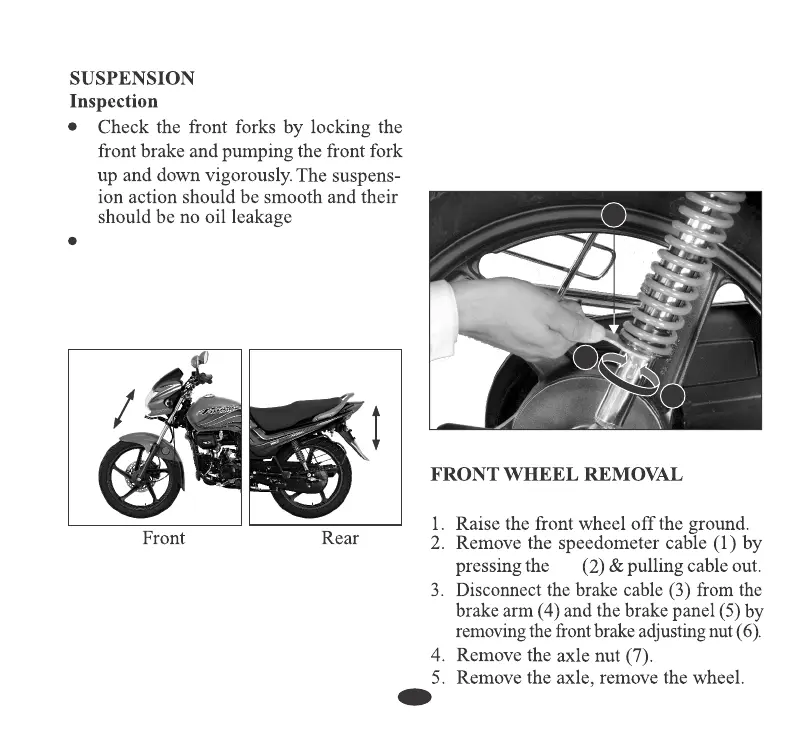

Check the rear shock absorber by
pushing hard downwards on rear grip
while the motorcycle is not parked on
stand. The suspension action should be
smooth and their should be no oil leakage.
