54
43).
2. Remove the speedometer cable (1) by
pressing the tab (2) & then pull out the cable.
5. Assemble in reverse order of removal.
1. Raise the front wheel off the ground.
4. Remove the axle then remove the wheel.
3. Remove the axle nut (3).
Axle nut torque 5.0-6.0 kgf-m.
Disc Type (Cast wheel version)

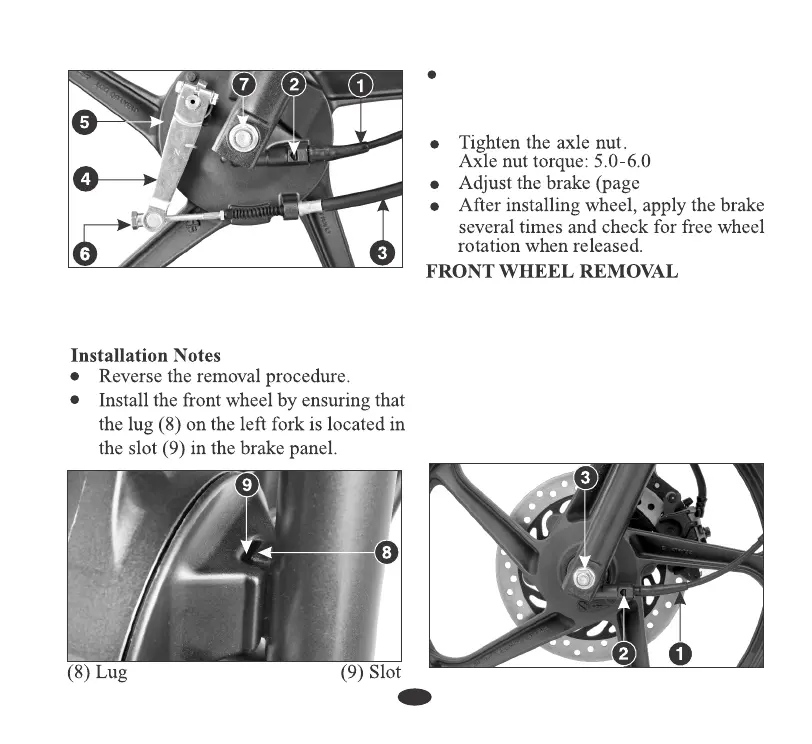

(1) Speedometer cable (2) Tab (3) Front
brake cable (4) Brake arm (5) Brake panel
(6) Front brake adjusting nut (7) Axle nut
(1) Speedometer cable (2) Tab (3) Axle nut
Switch on the ignition, rotate the front
wheel and see if speedometer needle is
working.
kgf-m
