ABOUT YOUR RECEIVER
GENERAL DESCRIPTION
The BMS-2 is a radio remote control receiver that
has been designed to work in conjunction with a
variety of transmitting devices.
The BMS-2 receiver components are contained
within a IP65-rated polymer composite housing,
providing reliable protection from routine cleaning
and the elements.
The 3-digit, 7-segment receiver display located on
the right side of the housing provides operating
status information and error codes assigned for your
configuration.

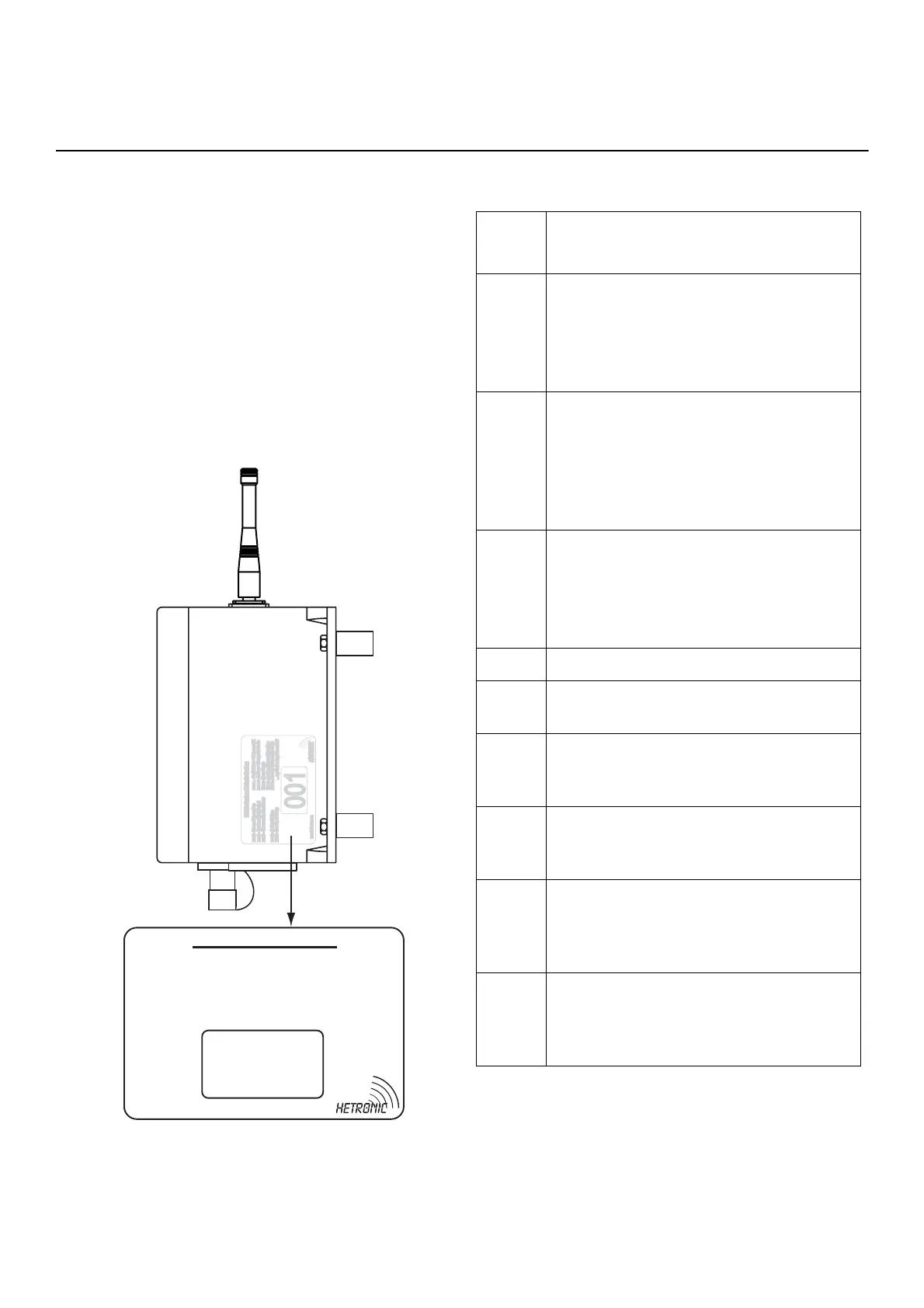

Figure 1: Receiver Display and Codes (Rotated)
BMS-2: System Status Indicators
x x 0 - Normal Operation x x 1 - System Not Started x x 3 - Communication Error x x 2 - Active E-Stop x x 4 - Passive E-Stop
x x x . - Dot blinks = Telgram OK x x . x - Dot on = Program Mode E x x - Error Code 1 x x - Analog Channel 1 active 2 x x - Analog Channel 2 active
www.hetronic.com
... up to Analog Channel 8
001
BMS-2: System Status Indicators
x x 0 - Normal Operation
x x 1 - System Not Started
x x 3 - Communication Error
x x 2 - Active E-Stop
x x 4 - Passive E-Stop
x x x . - Dot blinks = Telgram OK
x x . x - Dot on = Program Mode
E x x - Error Code
1 x x - Analog Channel 1 active
2 x x - Analog Channel 2 active
www.hetronic.com
... up to Analog Channel 8
001
Right
Side
Back
Side
Front
Side
Error
Code
Meaning
x x 0
Receiving Correct Signal, no E-Stop,
System Started.
Example: 0 0 0 means that the receiver
is getting a valid control telegram and
all joysticks are in the neutral position.
x x 1
Receiving Correct Signal, BMS-2 in
E-Stop, no E-Stop from TX.
Example: 0 0 1 means that the receiver
is getting a valid control telegram, all
joysticks are in the neutral position with
E-Stop condition in the receiver.
x x 2
Receiving Correct Signal, BMS-2 in
E-Stop, E-Stop Transmission from TX.
Example: 0 0 2 means that the receiver
is getting a valid control telegram, and
the transmitter E-Stop is engaged.
x x 3 RF Interface
0 0 4
Not Receiving Signal, no RF
Communication, or TX is OFF.
0 0 0 .
Flashing Dot After the Third Digit,
Change the Status with Each Correct
Received Telegram (Green LED).
0 0. 0
Flashing Dot After the Second Digit
Indicates Programming Mode (Quick
Set).
1 x x
Analog Output 1 Activated (up to 8).
Joystick not in the Neutral Position.
Joystick must be in the Neutral Position
to Start.
E x x
Error Codes are Assigned Numbers
Based on Configuration Requirements.
See your Technical Documentation for
your Specific Codes.
