CHUCK Bolting Data Processor
Operations Manual
CHUCK and all materials within copyright HEX TECHNOLOGY (2021) 15
A. Connect Cables to Brain
Each cable bundle contains four coaxial cables marked red, white, blue, and yellow.
We recommend using following sequence when connecting cables to the numbered ports:
1. Red
2. White
3. Blue
4. Yellow

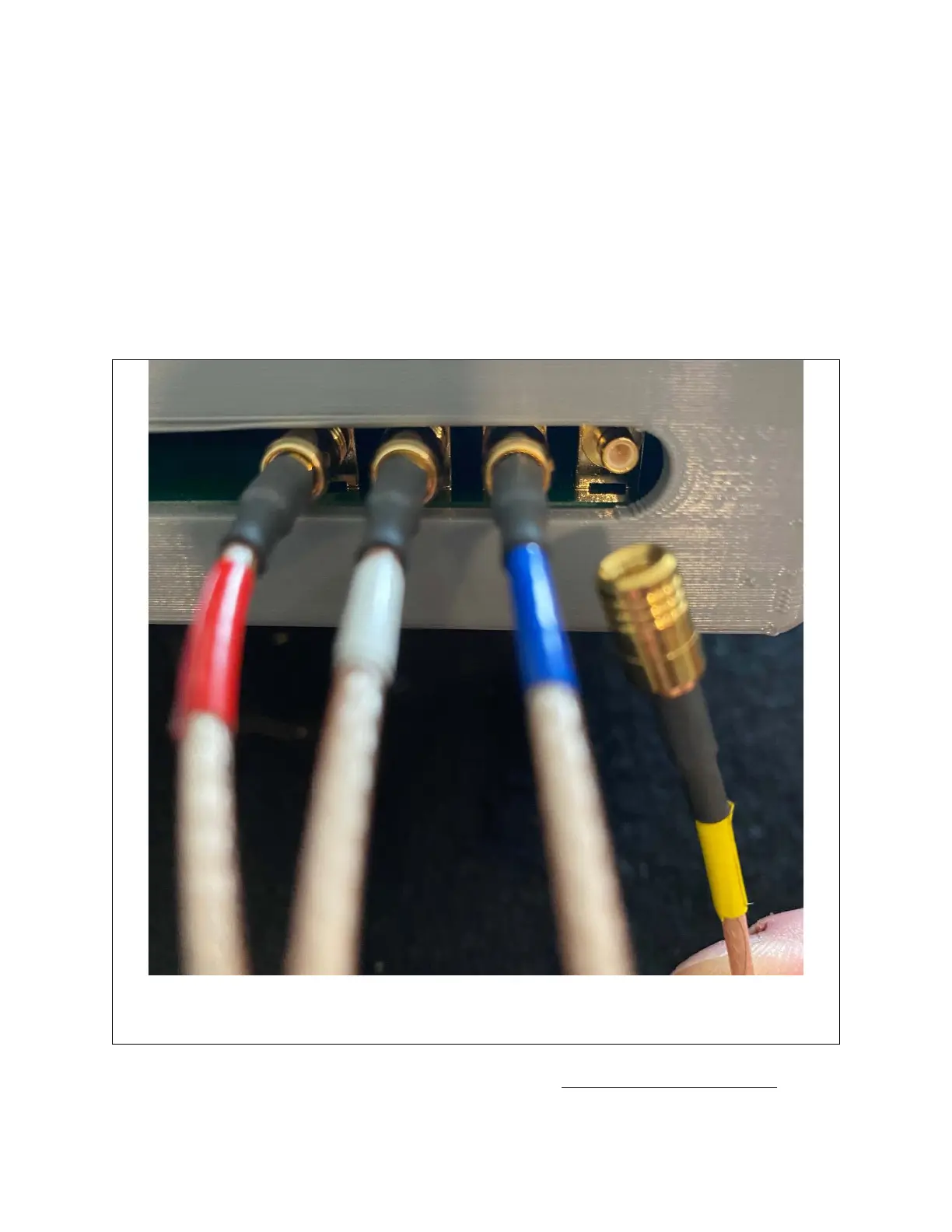

Attach red cable to connector #1, white to connector #2, blue to connector #3, and yellow to
connector #4.
Once cables are attached to ports on the CHUCK Brain, but not yet attached to the bolts, you
must calibrate the Brain.
