CHUCK Bolting Data Processor
Operations Manual
CHUCK and all materials within copyright HEX TECHNOLOGY (2021) 13
Bay Setup

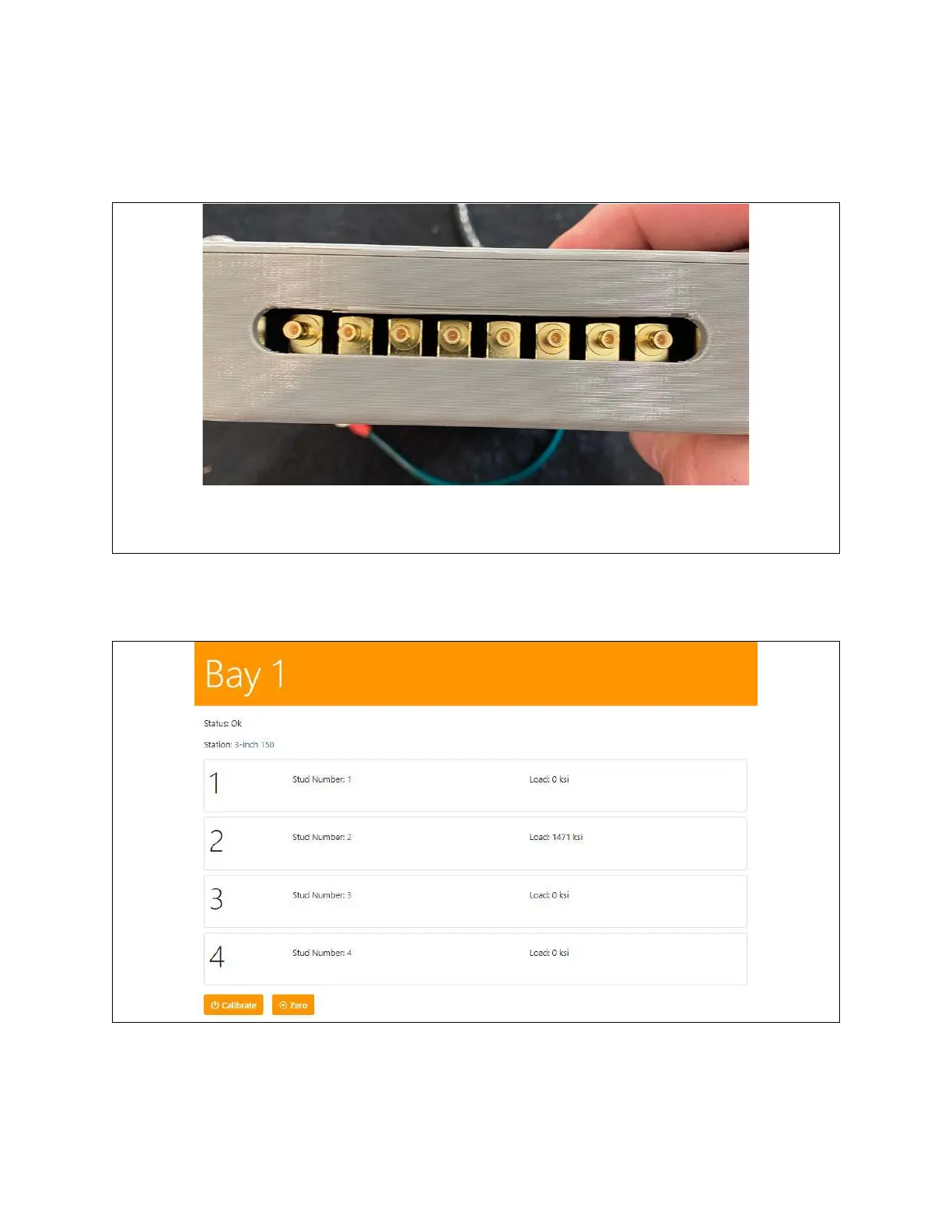

The CHUCK Brain has four sets of coaxial connectors within each Bay.
Two Bays are shown above. The four coaxial connectors to the left are one Bay, and the four o
the right are the other Bay.
You’ll use the “Setup” page within CHUCK’s software to tell the unit which ports connect with
which studs.
