CHUCK Bolting Data Processor
Operations Manual
CHUCK and all materials within copyright HEX TECHNOLOGY (2021) 12
o Multi-Trial is for use with the Torque Stand, or four 3/4" bolts in a fixed
arrangement so there is no elastic interaction or flange rotation involved in the

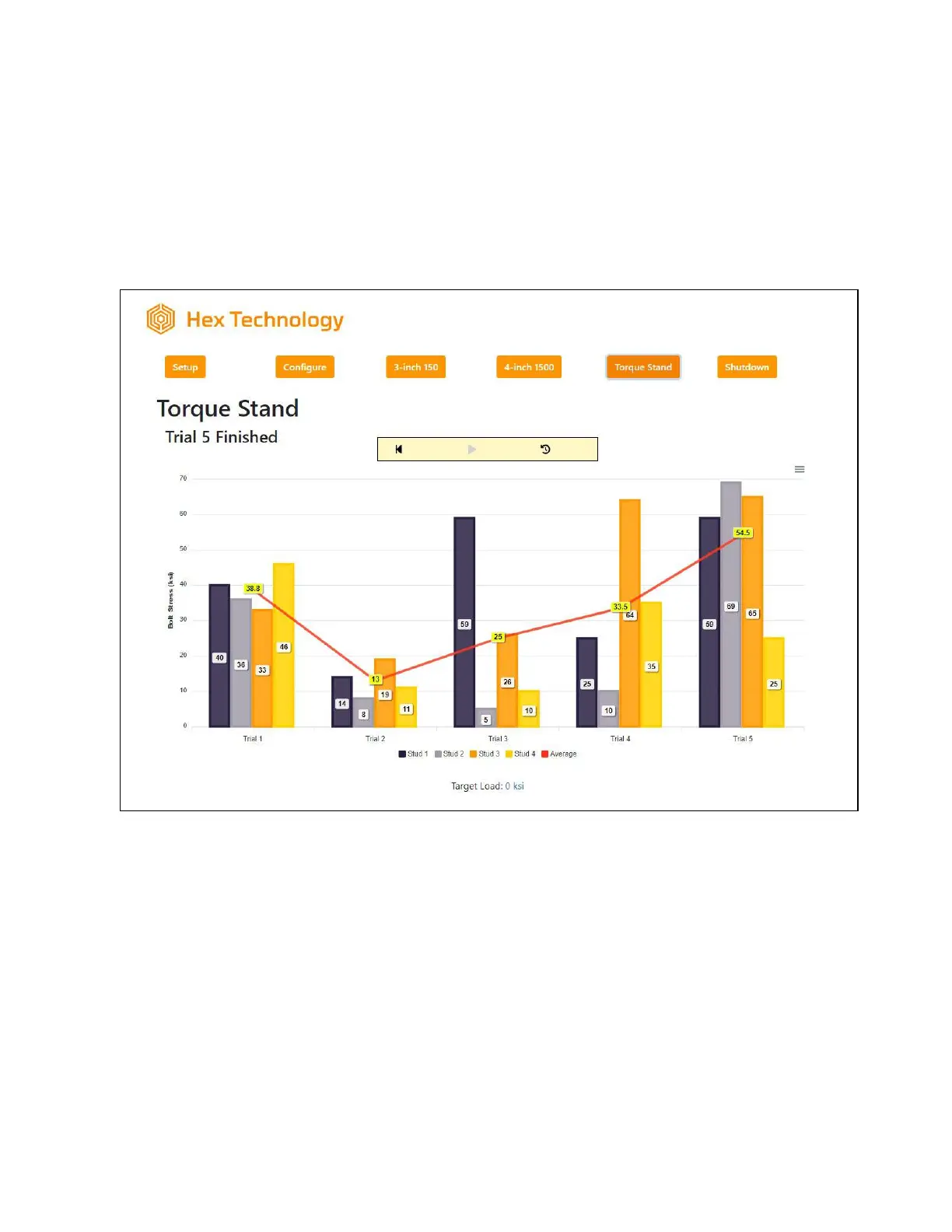

assembly. A Multi-Trial station allows up to five successive assemblies to be
stored within a single screen (shown below), which is helpful for comparing the
effect of good vs. bad assembly practices.
More about how to use the Multi-Trial system is included below (SEE SECTION: “Using CHHUCK
with a Torque Stand”).
Once you have configured a Station, click “Setup.” Setup is where you’ll go to assign ports on
the CHUCK Brain to studs within the flange or torque stand you’ve configured.
