Photogrammetry-Magnetic Coded Target Placement
9. OTHER FUNCTIONS

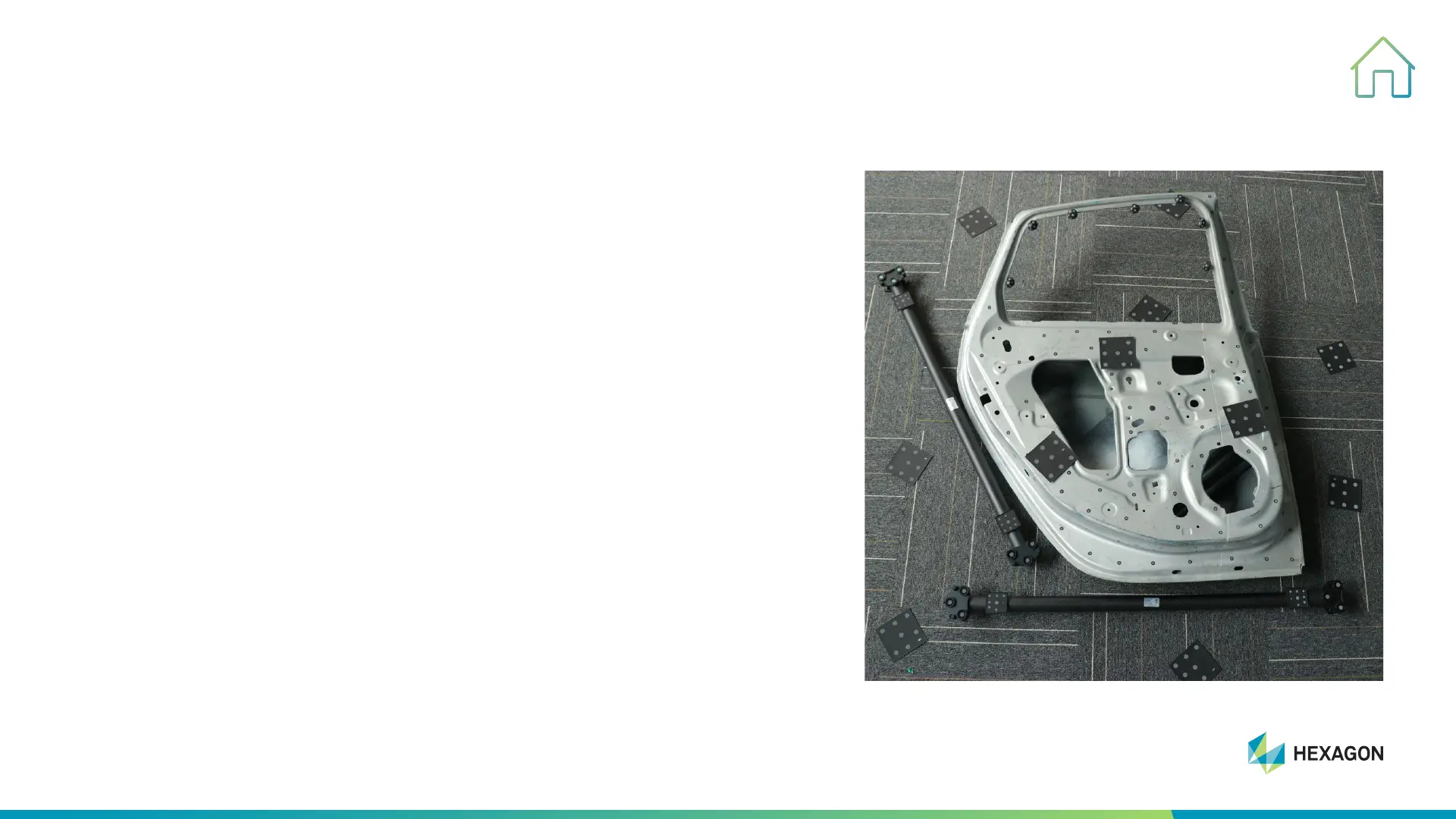

Put magnetic coded targets to cover the entire surface of part as
show in picture
The distance between two magnetic coded targets should be 20-
40 cm
Flat area: less magnetic coded targets required
Bending area: more magnetic coded targets needed
Don’t place magnetic coded targets on the positioning targets
